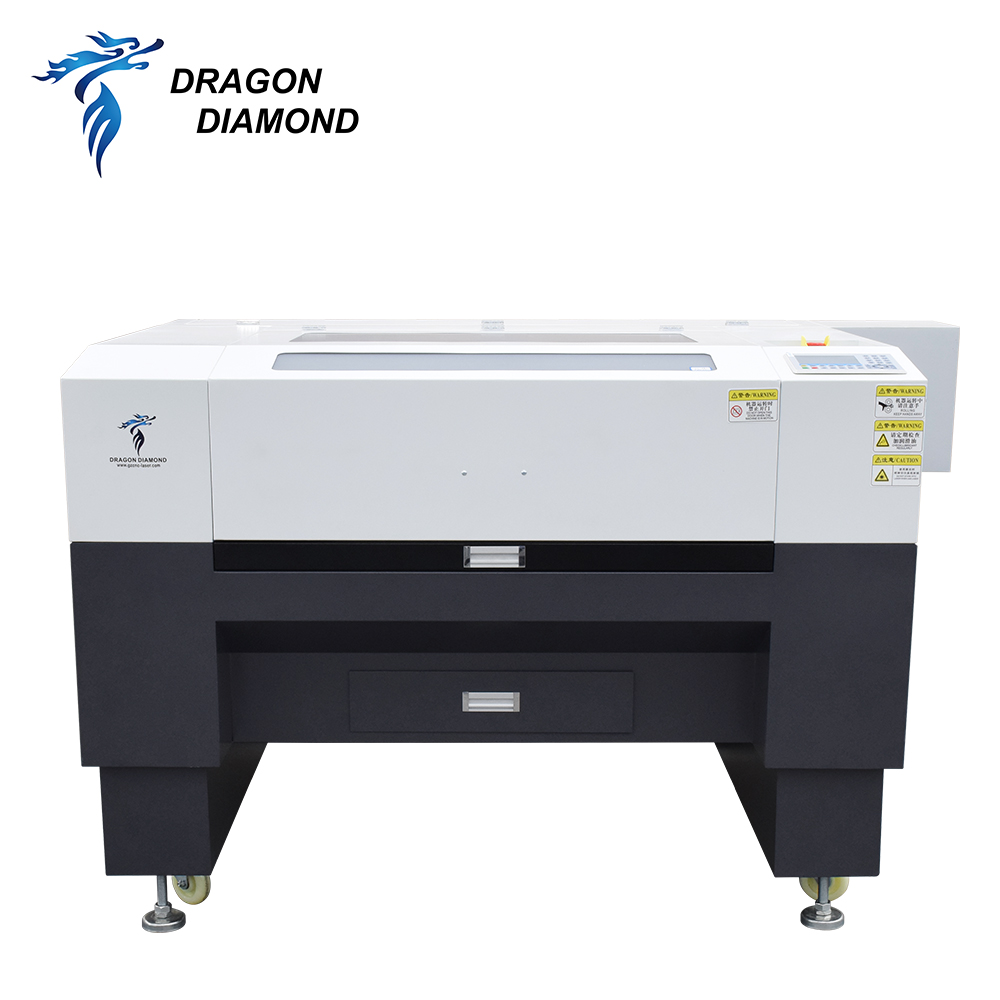

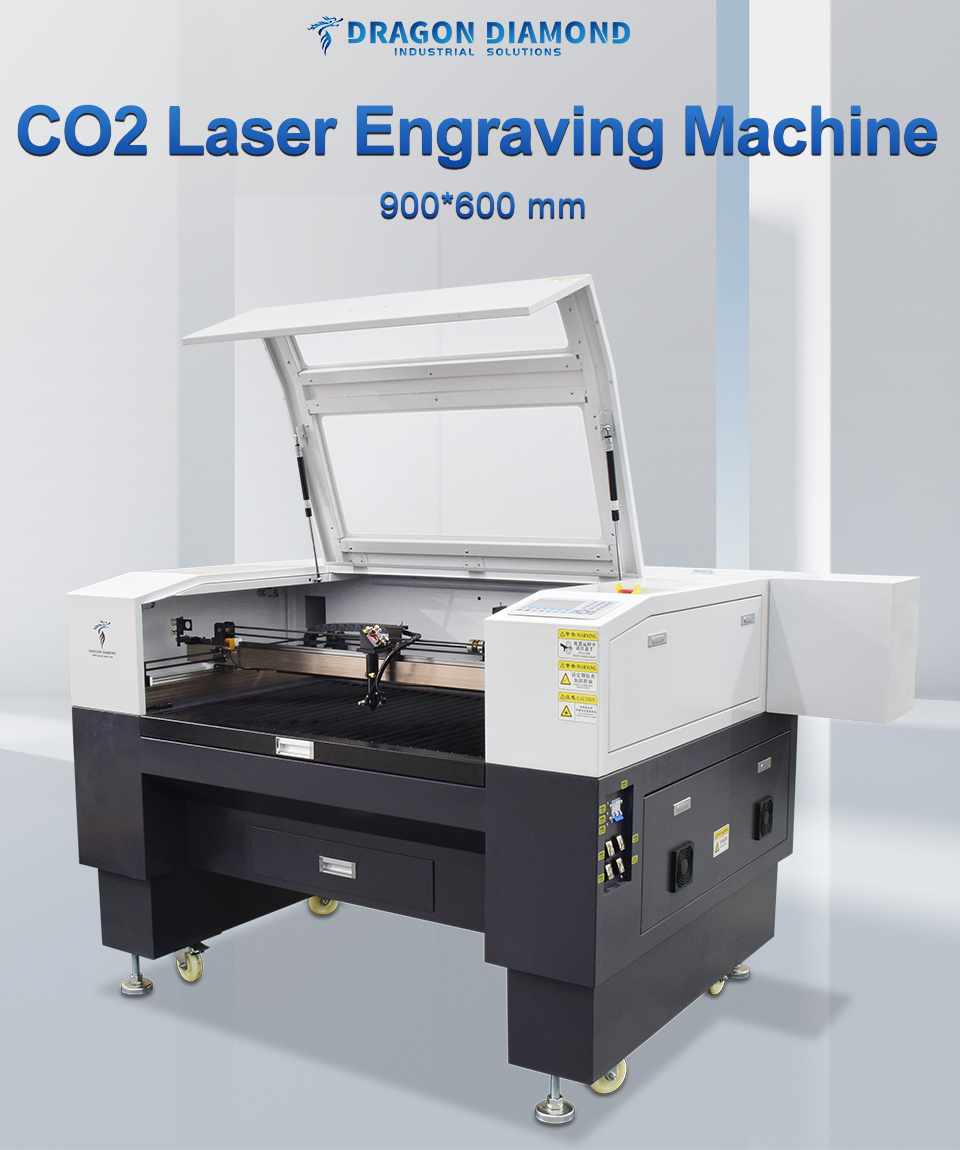

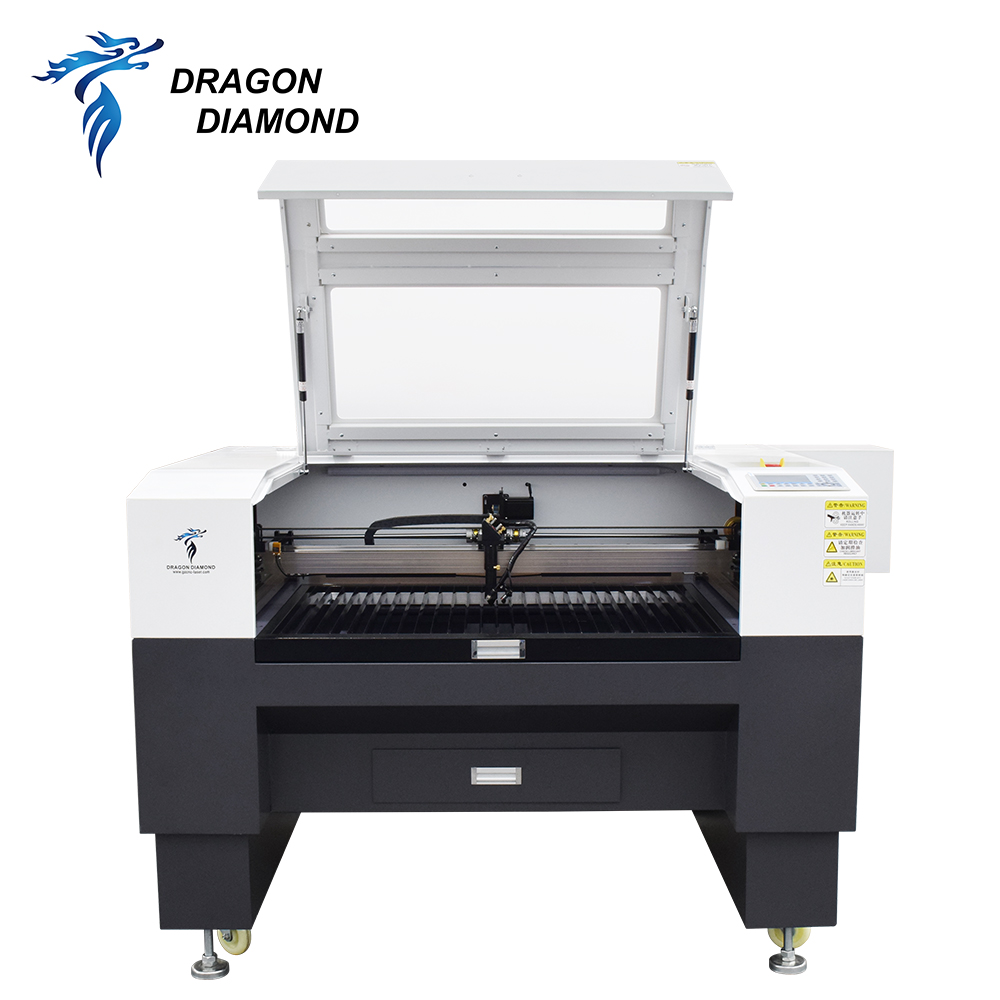

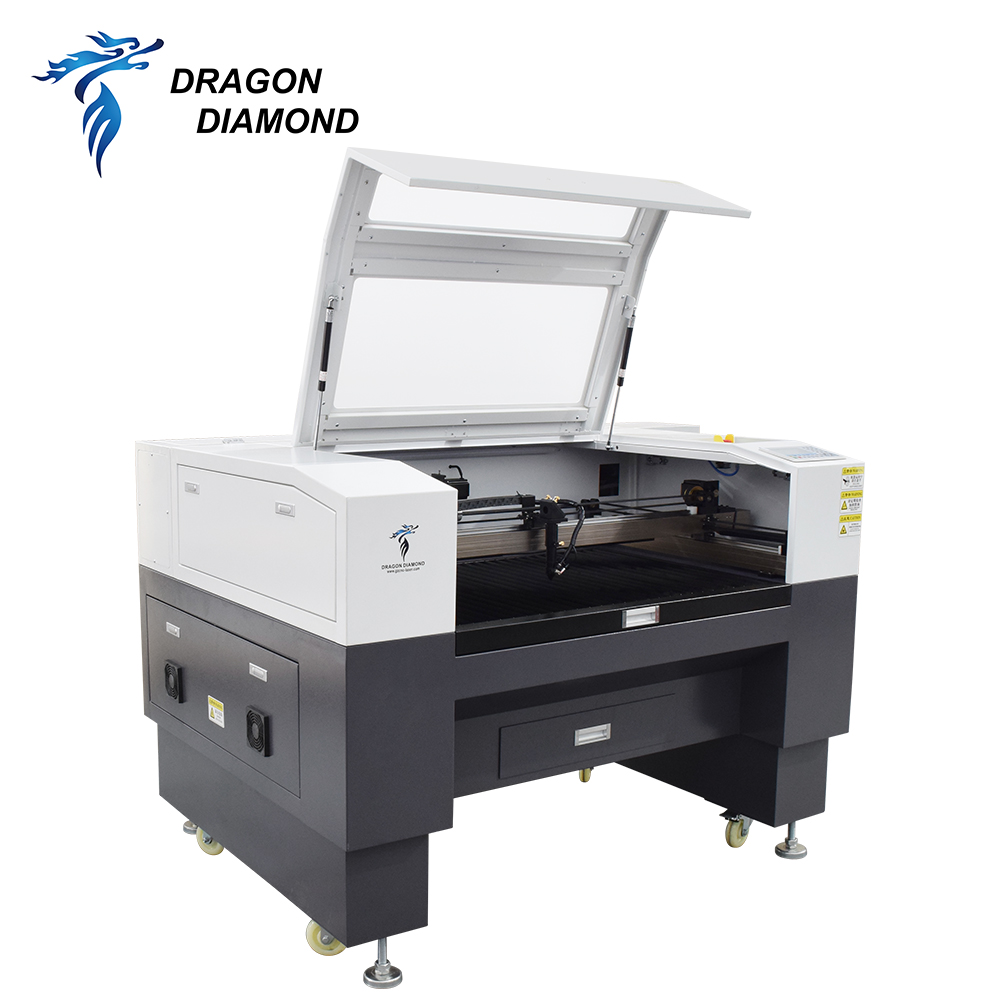

LZ-9060L CO2 Laser Cutting & Engraving Machine
A 900 × 600 mm CO2 laser machine for smaller signs, personalized crafts and suitable non-metal components. An optional CCD camera supports printed-contour work.
900 × 600 mm · 80W / 100W

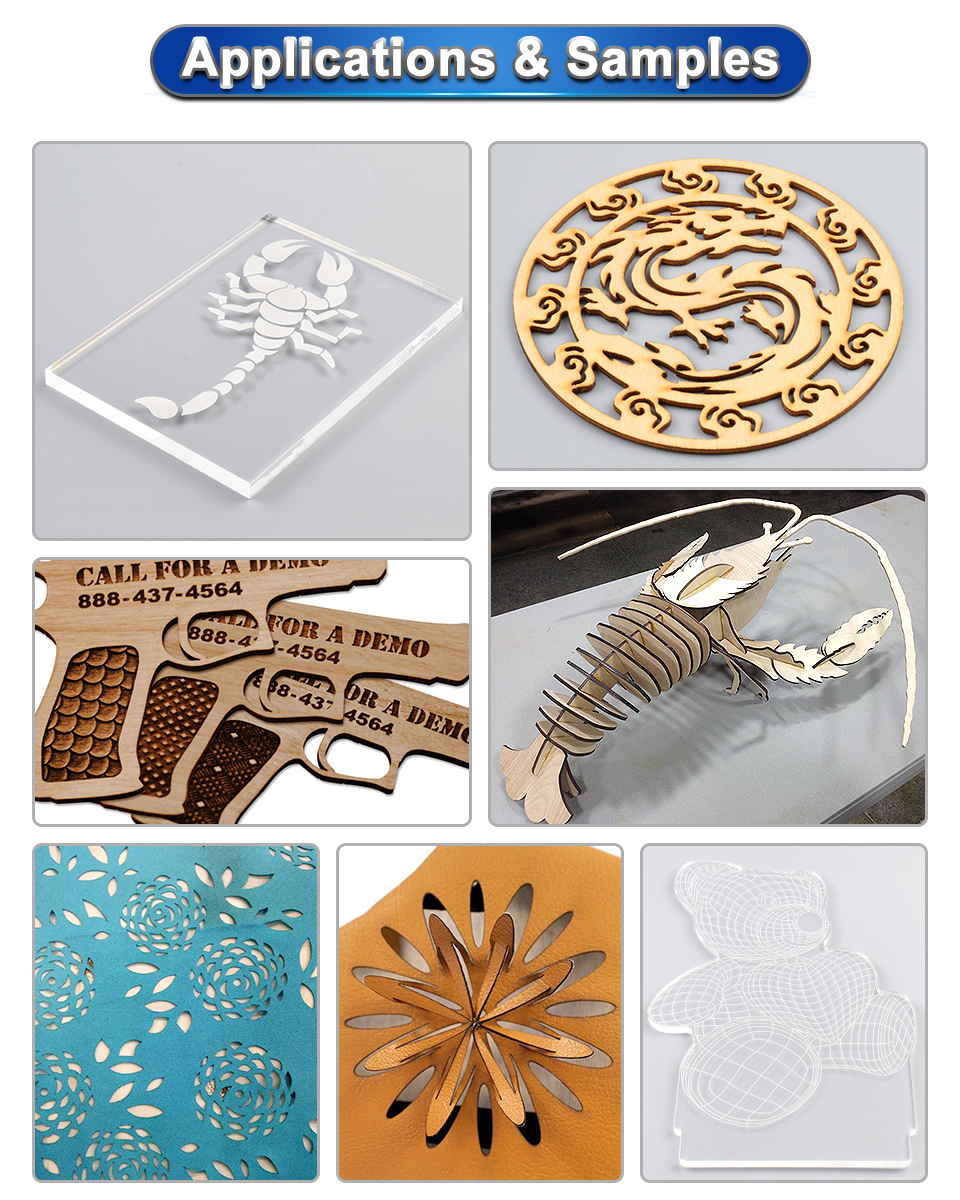

Application Examples
Examples of the types of work to discuss during sample testing. Confirm results on your own material and artwork.
Watch the Machine in Action
Watch LZ-9060L CO2 Laser Cutting & Engraving Machine demonstration
CCD contour-cutting series demonstration shared by the original 9060 and 1610 product pages. CCD is optional; confirm the work area and configuration in your quotation.
Watch on YouTubeA 900 × 600 mm CO2 laser machine for smaller signs, personalized crafts and suitable non-metal components. An optional CCD camera supports printed-contour work.
Configuration & Options
Choose the standard cutting and engraving configuration for artwork-based jobs, or add the CCD vision package for positioning and contour cutting around printed or embroidered patterns. CCD is an optional upgrade, not included with every LZ-9060L.

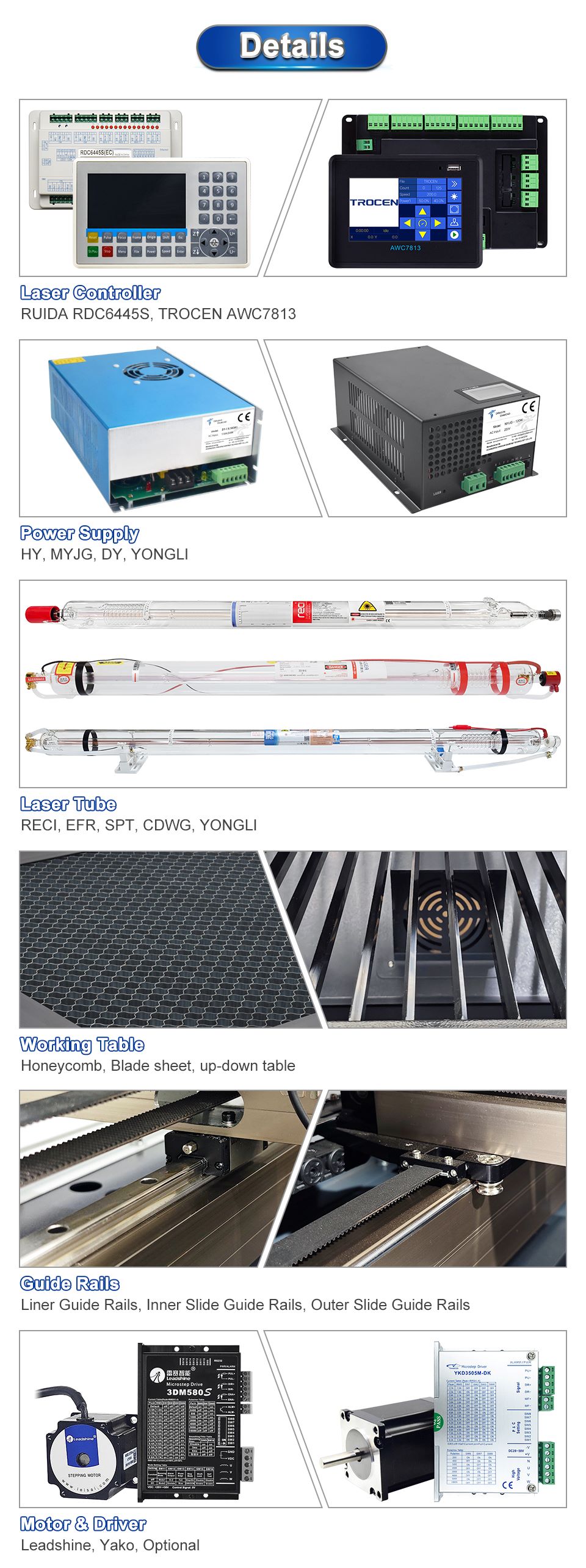

Standard Cutting & Engraving Configuration
- 900 × 600 mm working area
- Water-cooled sealed CO2 laser tube; 80W or 100W selected for the order
- Ruida 6445S-series controller with RDWorks workflow; exact controller model confirmed in the quotation
- ZnSe focusing lens and stepper motor drive

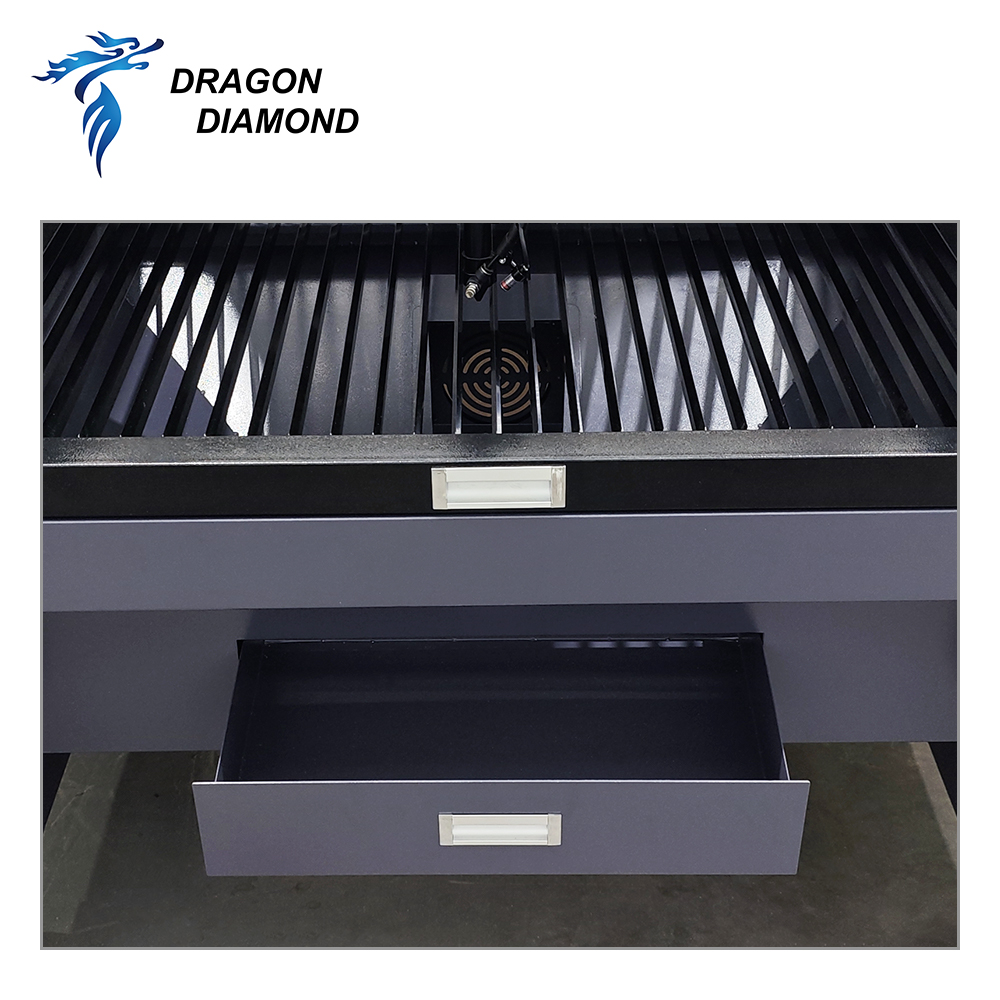

- Honeycomb and blade worktable configurations for different materials; confirm the supplied table combination

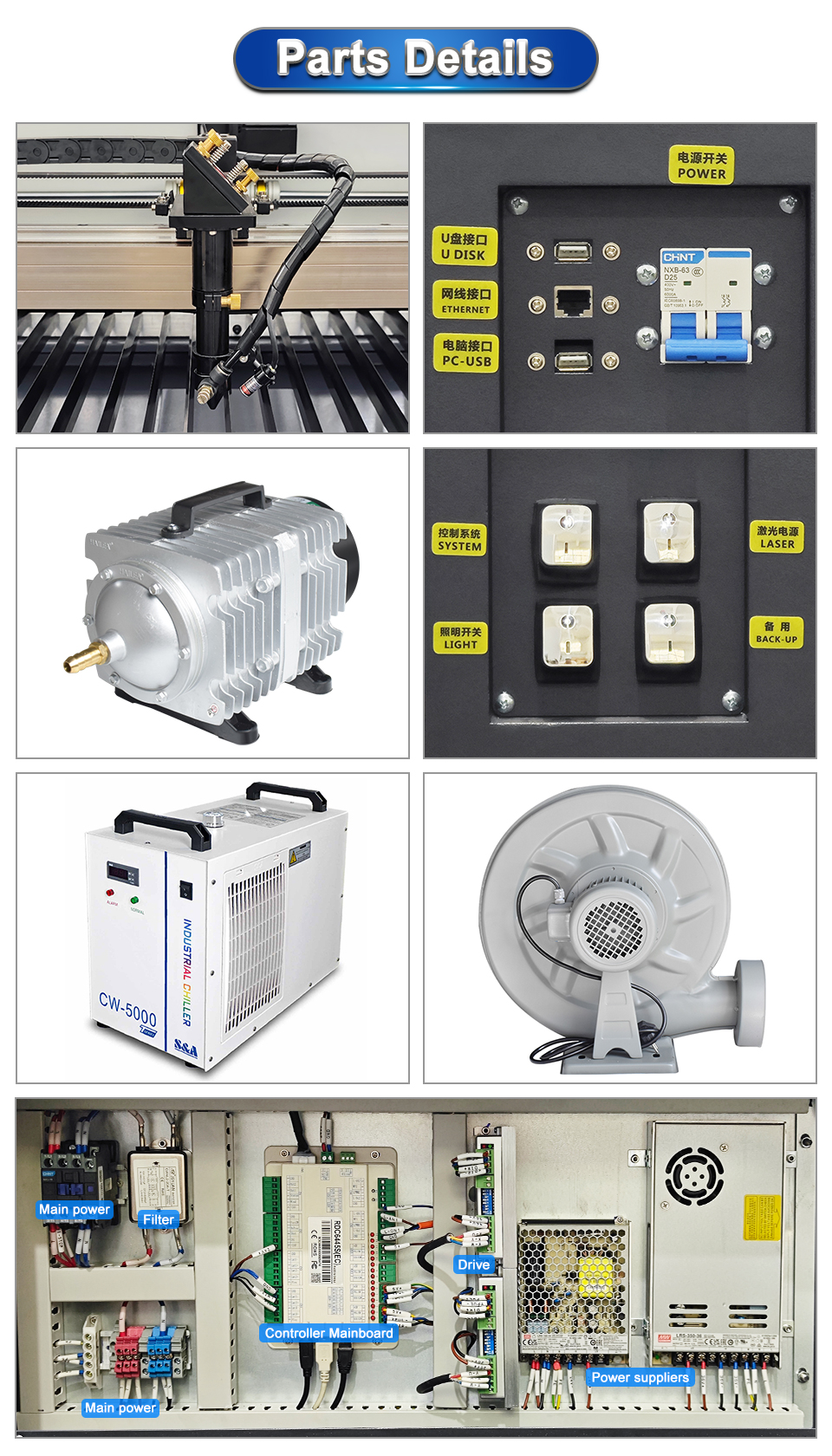

- Air-assist pump and exhaust fan; cooling unit matched to the selected laser tube

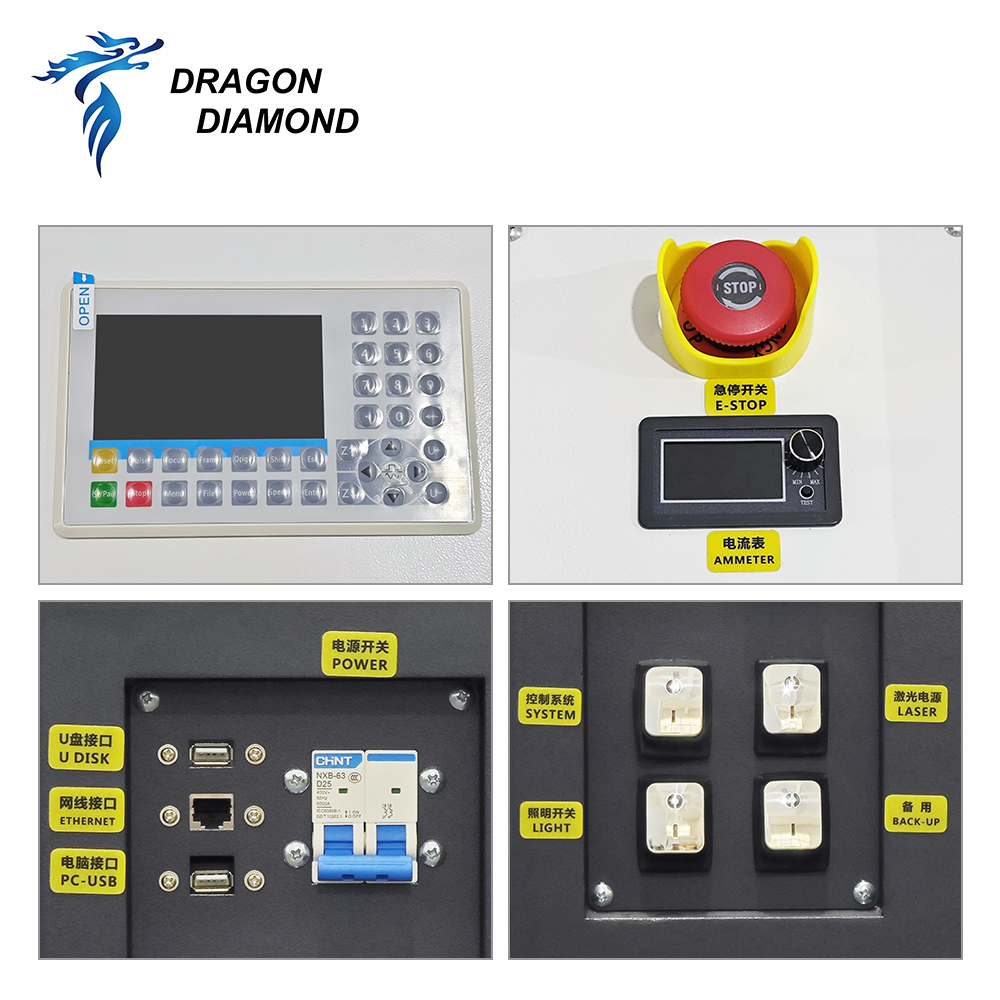

- USB flash-drive, PC-USB and Ethernet connections shown on the reference machine

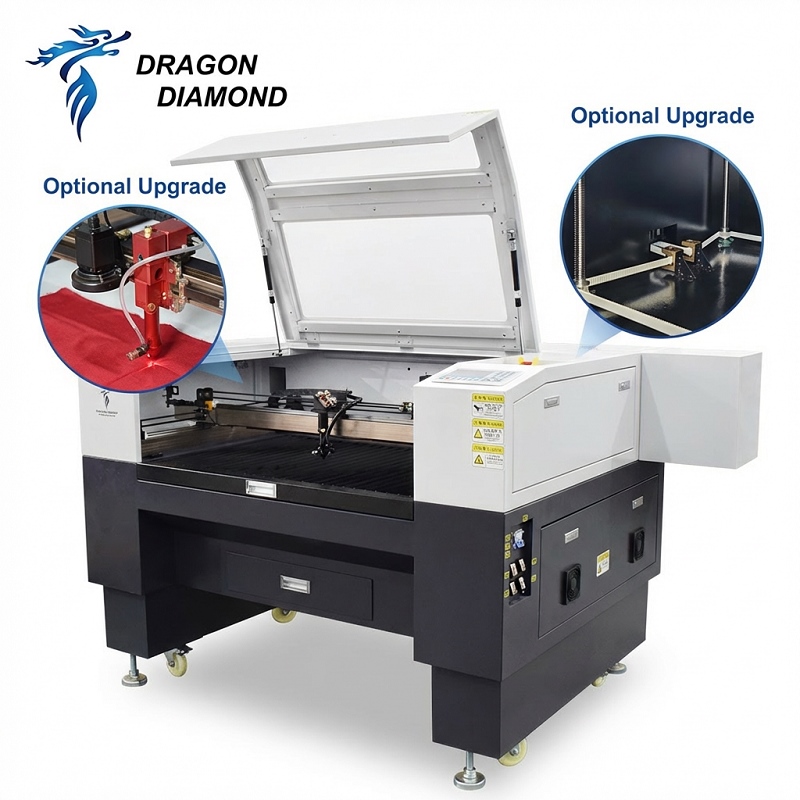

Optional CCD Vision Package

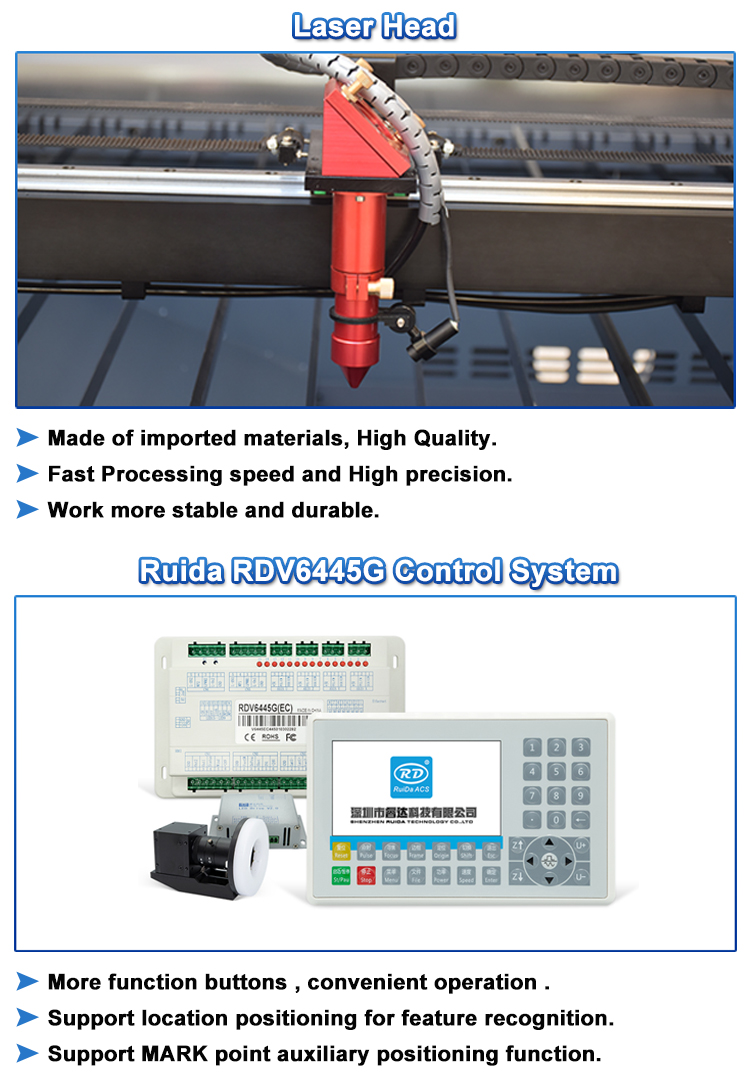

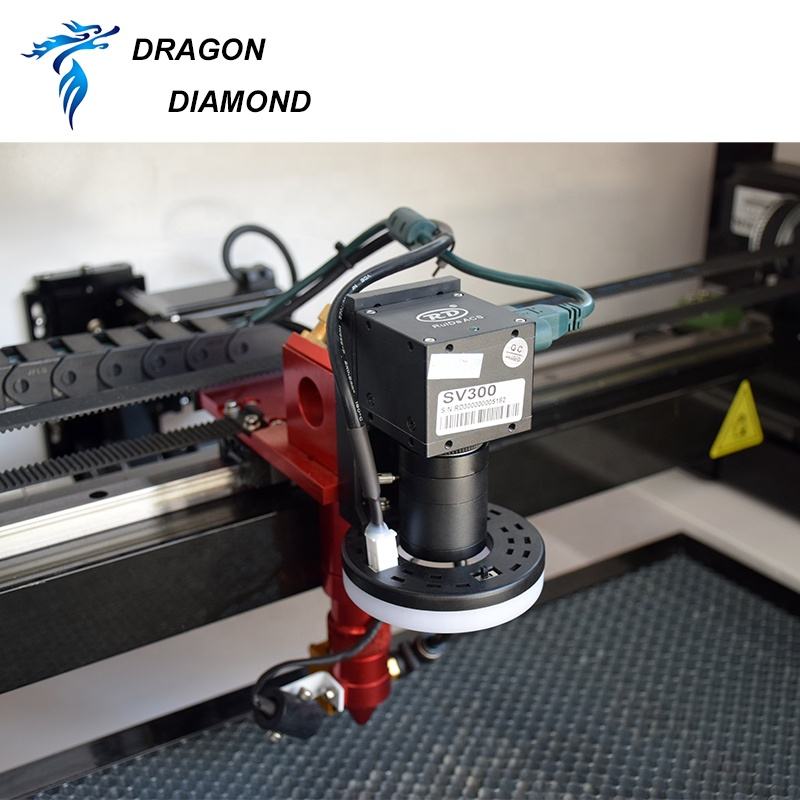

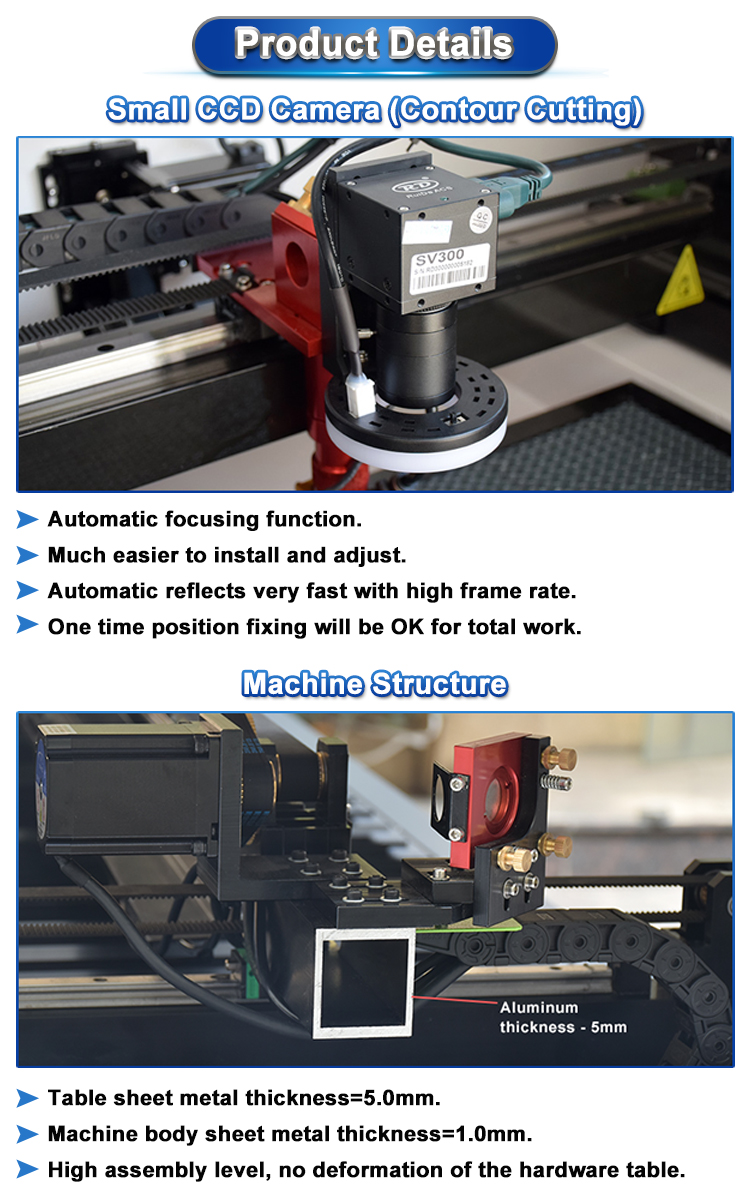

- Small CCD camera mounted beside the laser head
- Ruida RDV6445G vision controller in the reference CCD configuration
- Feature recognition and mark-point-assisted positioning for contour-cutting jobs
- For suitable printed fabric labels, embroidery patches and patterned leather parts
- Camera, controller, software setup and calibration specified together in the quotation
The CCD package adds positioning capability. It does not increase the working area or laser power.
Other Options & Order Selection
- Motorized up-and-down worktable for adjusting workpiece clearance
- Rotary attachment for suitable cylindrical engraving jobs, with compatible clearance and setup
- Red-light positioning pointer
- CW3000 / CW5000 cooling configurations in the standard reference; CW3000 / CW5000 / CW5200 listed for the CCD configuration. The supplied cooling unit is selected to suit the laser tube and operating conditions.
- Laser tube brand, controller, motor/driver and guide-rail configuration confirmed in the equipment proposal
Technical Specifications
| Model | LZ-9060L |
|---|---|
| Working area | 900 × 600 mm |
| Laser power | 80W / 100W; selected for the order |
| Laser type | Water-cooled sealed CO2 laser tube |
| Standard control | Ruida 6445S series; exact model confirmed in the quotation |
| CCD control option | Ruida RDV6445G with compatible small CCD camera |
| Software | RDWorks; vision setup matched to the selected CCD package |
| Focusing lens | ZnSe |
| Drive system | Stepper motor |
| File formats listed | PLT, DXF, BMP, AI, DST; artwork compatibility checked before production |
| Electrical supply options | 220V / 50Hz or 110V / 60Hz; specify destination requirements |
| Final configuration | Camera, controller, cooling, tables and accessories itemized in the quotation |
Applications
- Small acrylic signs and display parts
- Wood-based gifts and personalized items
- Printed fabric labels and embroidery-patch contours with the optional CCD package
- Suitable leather patterns and paper craft components after material testing
Material composition and finish affect laser suitability. Send your material specification and artwork for testing. Do not laser-process PVC or unidentified materials.
Explore the related industry solution
Frequently Asked Questions
Does every LZ-9060L include a camera?
No. CCD is optional. The photographed machine shows a configuration reference; your quotation identifies the camera, controller, table and cooling system supplied.
What changes when I add CCD?
The reference CCD package combines a small camera with a Ruida RDV6445G vision controller for feature recognition and mark-point-assisted contour positioning. Send representative printed or embroidered artwork for testing; camera calibration, material contrast and artwork affect positioning results.
Are the lifting table and rotary attachment standard?
No. The motorized lifting table and rotary attachment are order options. For cylindrical work, confirm the part diameter, length, weight and required table clearance before selecting the attachment.
Can you test my material before I order?
Yes. Request a free sample test with your material, thickness, artwork and desired finish. Sample shipping arrangements are agreed separately.
How do I choose laser power and accessories?
Share your material, part dimensions and production requirements. We review sample results and specify the laser, cooling, work surface and any camera or feeding accessories in the quotation.
What are the delivery and support arrangements?
Delivery timing is agreed for your order. English manuals, videos and remote training support installation and operation; the service scope is confirmed with the equipment proposal.
