LZ-1610L Panoramic CCD Dual-Head Fabric Laser Cutter

The LZ-1610L panoramic CCD dual-head fabric laser cutter combines a 1600 × 1000 mm conveyor table, overhead vision positioning and two CO2 laser heads on one rail. Vision contour cutting uses one head only; ordinary cutting can use both heads simultaneously for the same pattern.

1600 × 1000 mm · 150W × 2 · Conveyor feeding

VISION CONTOURS: SINGLE HEAD
ORDINARY SAME-PATTERN CUTTING: TWO HEADS TOGETHER

Get a Quote Request a Free Sample Test

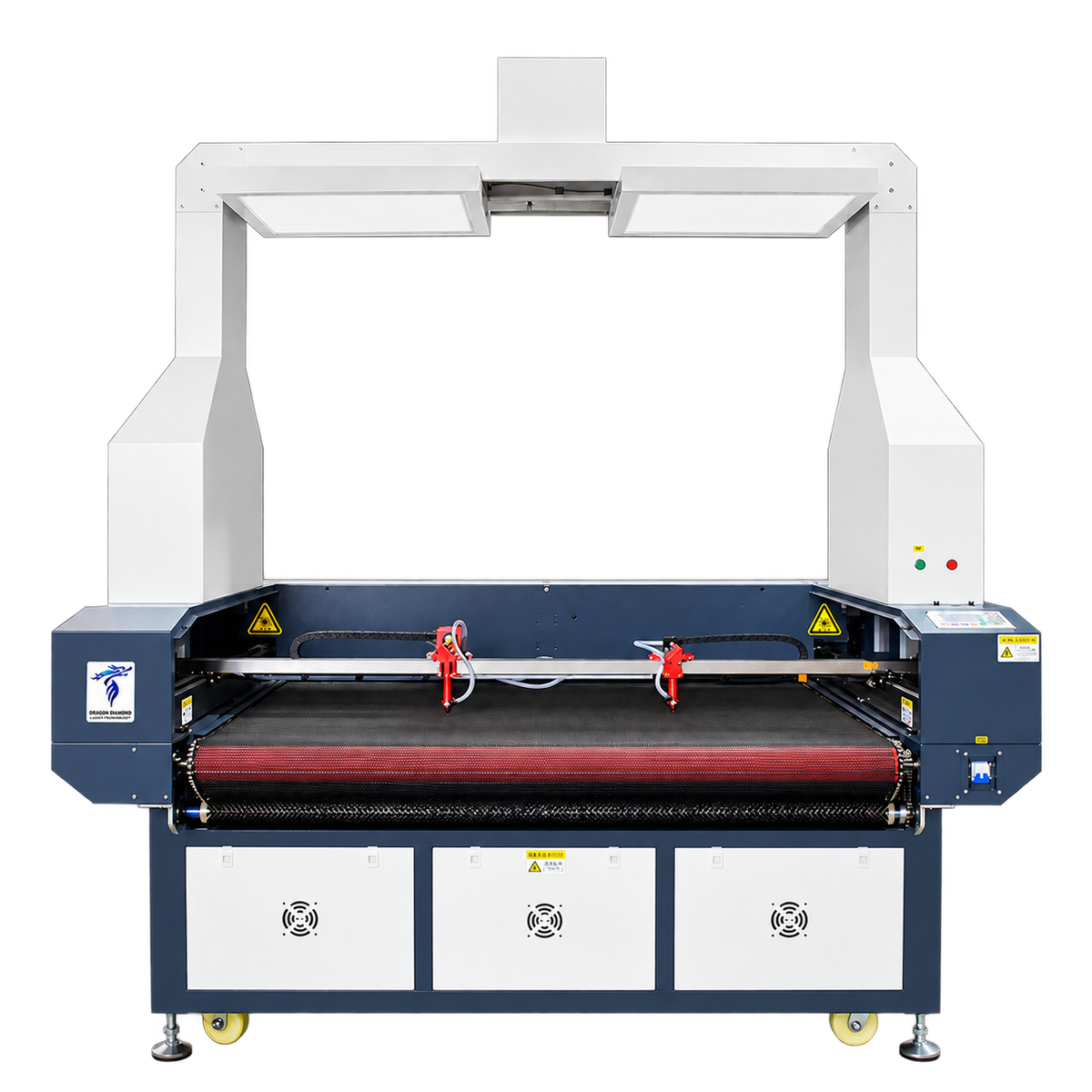

LZ-1610L panoramic CCD fabric laser cutter with two heads on one rail and conveyor table — Actual single-rail dual-head machine with panoramic camera frame and conveyor. Final supplied accessories are listed in the quotation.

What Can You Make?

Decorative textile application examples. Printed contour jobs use one head; ordinary repeated patterns can use two.

Turquoise floral textile cut-out application illustration — Floral Cut-Outs
Decorative fabric panels and repeat motifs.

Burgundy lace-style textile application illustration — Lace-Style Patterns
Evaluate fine patterns and edge finish on your fabric.

White patterned textile edge application illustration — Patterned Fabric Edges
Garment and home-textile components for sample testing.

Source-derived application illustrations, edited with AI. These images are not proof of results from this machine. Confirm material suitability and finish through sample testing.

Two Cutting Modes, Clearly Defined

Panoramic Vision Contour Cutting

One cutting head active. The overhead camera captures the fabric pattern for contour positioning. Use this mode for suitable printed textile outlines after recognition and sample testing.

Only one head cuts in vision contour mode. The second head does not cut a second camera-recognized contour at the same time.

Ordinary Same-Pattern Cutting

Two heads can cut simultaneously. Both heads follow the same programmed pattern in ordinary cutting mode, making this setup suitable for repeat fabric components.

Part size, head spacing and fabric layout determine usable coverage. This mode does not provide independent vision contour cutting with two heads.

Included Reference Configuration

1600 × 1000 mm working area with an automatic conveyor feeding table
Panoramic CCD camera above the working area
Two laser heads on a single rail
Two 150W RECI T6 sealed CO2 laser tubes in the dual-head reference configuration
AWC7824K control system with camera positioning setup
S&A CW5202 water chiller
Stepper motor drive and USB computer connection

Options & Order Confirmation

Air compressor, fume filtration and industrial computer are listed as optional in the source configuration. Confirm their inclusion and the roll-loading equipment in the quotation. The conveyor moves material through the cutting area; a separate roll-loading or unwinding unit must be specified for your roll width, diameter and weight.

Applications & Machine Details

Discuss printed textile panels, decorative fabric cut-outs, lace-style patterns and repeat garment components with our team. Vision jobs use one head; repeated identical patterns can use two heads in ordinary cutting mode. Printing, sewing and final assembly are separate processes.

The overhead camera and lighting frame observe the work area. The single-rail carriage carries two cutting heads, while the conveyor table and feeding motor advance suitable fabric. The dual-tube configuration is cooled by the CW5202 unit.

Material composition, dyes, coatings and stretch affect recognition and edge finish. Send a representative sample and artwork for testing. Do not laser-process PVC or unidentified coated materials.

Discuss textile production requirements · Compare CO2 laser machines

Watch the Machine in Action

Watch the LZ-1610L panoramic CCD dual-head fabric laser demonstration. This dual-head machine uses only one cutting head for vision contour cutting; simultaneous dual-head operation is for ordinary cutting of the same pattern.

Watch on YouTube

Delivery, Setup & Support

Request a free sample test with your fabric composition, thickness, roll dimensions, artwork and desired edge finish. Sample shipping arrangements are agreed separately.

We review the camera workflow, controller software, cooling, extraction, electrical supply and material handling with your equipment proposal. Delivery timing, packing dimensions, installation support and warranty scope are confirmed for the order. View technical support · Visit our factory.

Technical Specifications

Model / configuration	LZ-1610L · Panoramic CCD dual-head auto-feeding fabric cutter
Working area	1600 × 1000 mm
Head arrangement	Two heads on one rail
Vision contour mode	Single-head cutting only
Ordinary cutting mode	Two heads can cut the same pattern simultaneously
Laser source	150W RECI T6 × 2 in the dual-head reference configuration
Laser type / wavelength	Sealed CO2 laser tube / 10.6 μm
Vision system	Overhead panoramic camera positioning
Controller	AWC7824K
Cooling	S&A CW5202 water chiller
Working table	Automatic wire conveyor feeding table
Drive / connection	Stepper motor / USB
Electrical reference	AC 220V, 50Hz, single phase; confirm destination requirements
Software & files	Controller-compatible cutting and vision software; confirm artwork import and camera workflow during testing

Frequently Asked Questions

Can both heads cut camera-recognized contours at the same time?

No. For this machine, vision contour cutting uses one head only. The dual-head arrangement does not provide simultaneous independent vision cutting.

When can I use both heads together?

In ordinary cutting mode, the two heads can cut the same programmed pattern simultaneously. We review part size, head spacing, material width and layout before confirming the setup.

Is this the same as a dual-track asynchronous machine?

No. This configuration has two heads on one rail. It should not be described as two independently moving tracks. Ask us to compare configurations if your workflow requires different patterns or independent head motion.

Does automatic feeding include every roll-handling accessory?

The reference includes a conveyor feeding table. Confirm separate roll-loading or unwinding equipment, roll capacity and any industrial computer or extraction accessories in the quotation.

How do I confirm contour recognition and the edge finish?

Send your actual fabric, composition, coating details and artwork. A sample test checks recognition, cutting mode and edge finish; results depend on the material and job.

What is the laser power in the dual-head configuration?

The source dual-head reference uses two 150W RECI T6 laser tubes. Each head has its own tube; this is not a single 300W laser beam. The equipment quotation confirms the supplied components.
