Roll-up Displays
Printed flexible graphics for retractable display stands, exhibitions and promotions. Confirm media and finishing for your stand.
DRAGON DIAMOND / PRINTING EQUIPMENT
LZ-1901X1 Eco Solvent Printer for Banners & Vinyl
Wide-format CMYK printing for banners, vinyl, posters and advertising graphics. Configure the printhead and media setup around your production.
- Ink colors
- CMYK
- Printhead options
- XP600 / I1600 / I3200
- Printhead count
- Single head
- Maximum print width
- 1900 mm
02 / APPLICATIONS
Turn Roll Media into Advertising Graphics
Explore printing applications for your production. Share your artwork and media so we can review the setup and arrange a sample test.
Banners & Posters
PVC banners, poster media and promotional graphics for signs and displays. Select suitable media and print settings.
Vinyl & Window Graphics
Compatible self-adhesive vinyl for stickers, shop decoration and window graphics. Check adhesion and finish on the selected material.
Illustrative application images. Confirm media compatibility and the finished result with a sample test.
Test Your Media Before Choosing
Send your artwork, roll dimensions and required finish so our team can review the printing setup.
03 / CONFIGURATION
Choose the Setup for Your Work
Printing Equipment
- Model shown
- LZ-1901X1
- Ink colors
- CMYK
- Media
- Compatible roll media
- Drying
- Drying system
Printheads & Model Options
LZ-1901X1 is a single-head model with a maximum print width of 1900 mm and XP600, I1600 or I3200 options. LZ-1902-D is a dual-head model with a maximum print width of 1800 mm and I1600 or I3200 options.
Share your required print width, daily output, quality target and installation voltage. We confirm the head type and quantity, ink compatibility, maximum media width and accessories in your quotation.
Your complete-machine quotation specifies the included printhead and accessories. Separate printheads and machine bodies without printheads are different supply options.
04 / MACHINE DETAILS

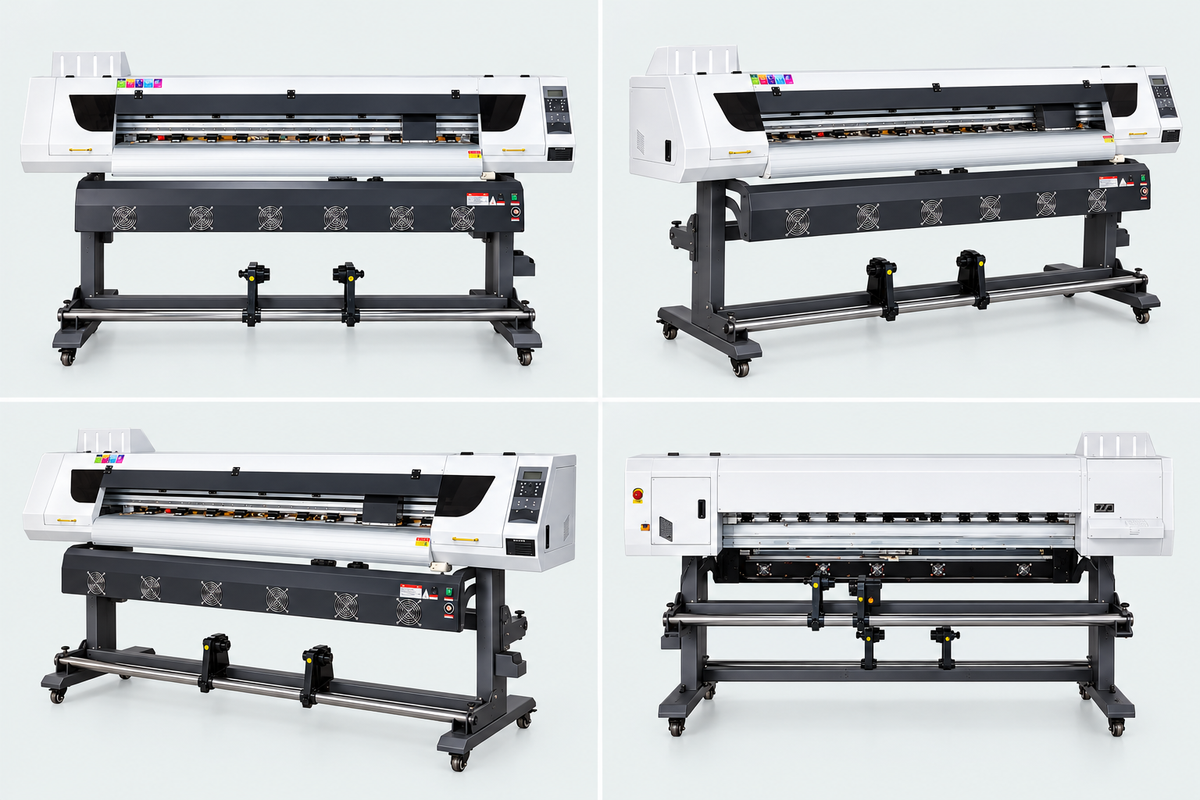

Review the Printer from Every Side
05 / DELIVERY & SUPPORT
From Sample Testing to Daily Operation
Sample Processing
Share your artwork, roll media and quality requirements for a sample test before confirming the equipment solution.
Packing & Dispatch
Standard configurations are scheduled for dispatch 20–25 working days after receipt of the deposit. Transit time is additional. Wooden-crate packing is generally included.
Technical Support
Remote operation guidance, maintenance assistance and spare-parts support help with installation and daily use. Freight and delivery scope follow the EXW, FOB or CIF terms in your quotation.
06 / SPECIFICATIONS & FAQs
Details for Your Equipment Review
Technical Specifications & Printing Speeds
| Specification | LZ-1901X1 | LZ-1902-D |
|---|---|---|
| Printhead count | Single head | Dual heads |
| Maximum print width | 1900 mm | 1800 mm |
| Maximum media-feed width | 1930 mm | 1850 mm |
| Printhead options | I3200 / I1600 / XP600 | I3200 / I1600 |
| Ink colors | CMYK | CMYK |
| Listed power | 2500 W | 3500 W |
| Operating temperature | 22–28°C | 22–28°C |
| Relative humidity | 40–60% | 40–60% |
| Net / gross weight | 160 / 180 kg | 240 / 260 kg |
| Machine dimensions (L × W × H) | 2810 × 740 × 1370 mm | 2980 × 760 × 1470 mm |
| Packing dimensions (L × W × H) | 2900 × 690 × 630 mm | 3200 × 760 × 860 mm |
Maximum print widths are 1900 mm for LZ-1901X1 and 1800 mm for LZ-1902-D. Maximum media-feed widths are 1930 mm and 1850 mm respectively. Confirm installation voltage, printhead version, ink compatibility and final supplied accessories in your quotation.
Brochure Printing Speeds — LZ-1901X1
| Mode | I3200 | I1600 | XP600 |
|---|---|---|---|
| 4 pass | 23 m²/h | 14 m²/h | 11 m²/h |
| 6 pass | 16 m²/h | 8 m²/h | 7 m²/h |
| 8 pass | 10 m²/h | 6 m²/h | 5 m²/h |
Brochure Printing Speeds — LZ-1902-D
| Mode | I3200 | I1600 |
|---|---|---|
| 4 pass | 39 m²/h | 18 m²/h |
| 6 pass | 32 m²/h | 12 m²/h |
| 8 pass | 22 m²/h | 10 m²/h |
Speeds are brochure reference values. Actual production output varies with media, artwork, print resolution, pass count, quality settings and operating conditions. Confirm your required quality and production target through sample testing.
Which printhead should I choose?
LZ-1901X1 uses one printhead, with XP600, I1600 or I3200 options. LZ-1902-D uses two printheads, with I1600 or I3200 options. Share your media, print quality and daily output so we can recommend the appropriate model and head configuration.
Does the quotation include the printhead?
The complete-machine quotation specifies the included printhead and accessories. Machine bodies without printheads and separate printheads are different supply options; confirm the complete configuration when requesting a quotation.
Can it print directly on acrylic boards or phone cases?
This model is intended for compatible roll media. For rigid panels and personalized objects, explore the LZ-6090UV UV flatbed printer.
Can you test my artwork and material?
Yes. Send your artwork, media type, roll dimensions and required finish so our team can arrange a suitable sample test and confirm the printing setup.
What warranty is available?
The machine listing specifies a one-year warranty. Confirm coverage for the selected printhead, ink system, consumables and other components in your quotation.
Discuss Your Application
Tell us your media, required width, artwork and daily output. You can also request a sample test.
