LZ-6090 Small CNC Router for Signs and Engraving
A small-format CNC router for compact signage parts, engraving and prototype work. The standard aluminum T-slot table with PVC protection can be configured with an optional water-tank arrangement for suitable wet-machining applications.
600 × 900 mm · 2.2 kW water-cooled
02 / APPLICATIONS & FINISHED PRODUCTS
What can you make?
Explore finished-product applications for LZ-6090. Share your material and design for a free sample test.
Wood relief decoration
Carved surface details for decorative panels and woodworking projects.

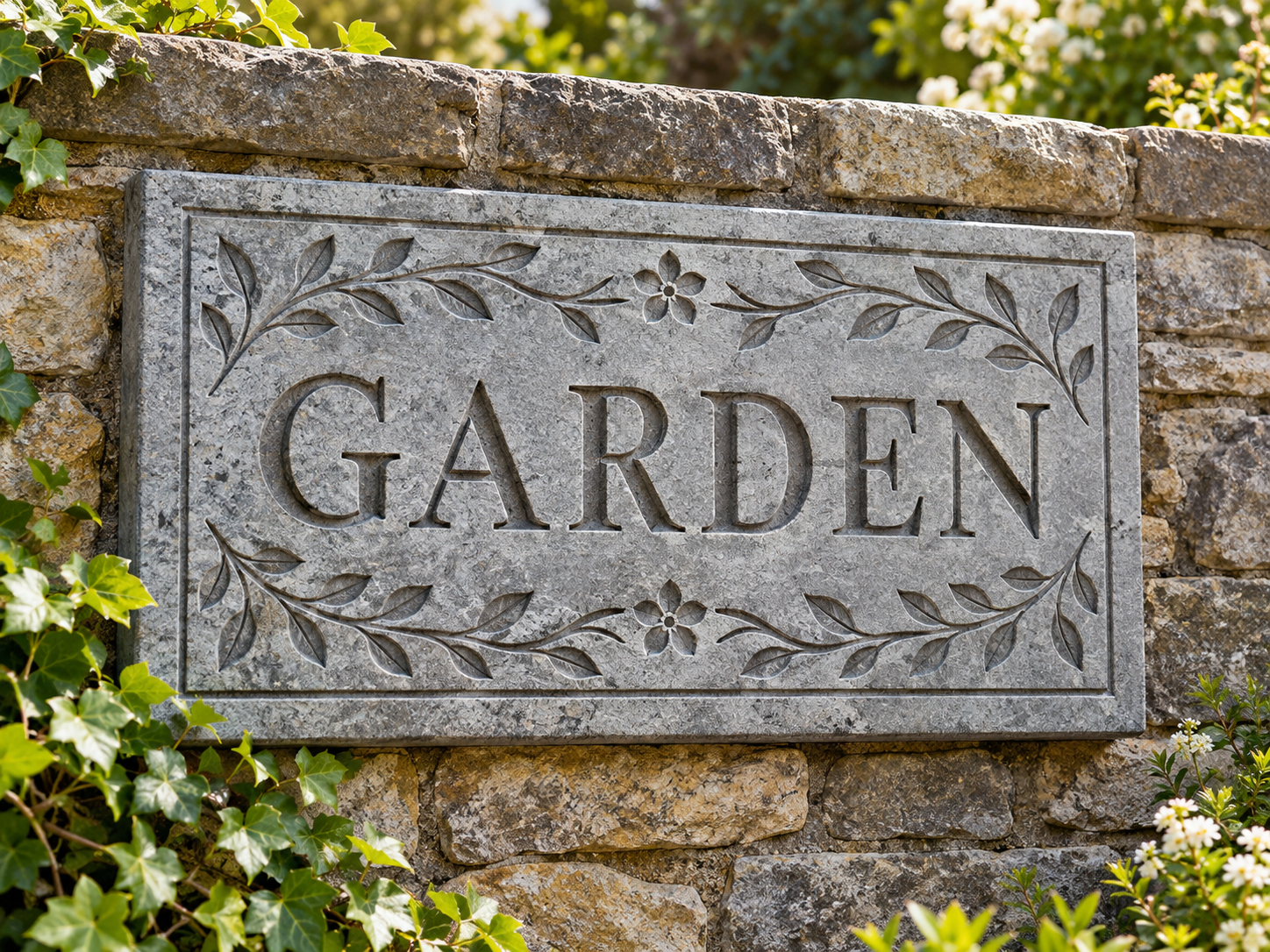

Stone signs & plaques
Small stone plaques within the 600 × 900 mm area require the optional water-tank configuration and suitable tooling.
Illustrative application images. Final results depend on material, tooling and configuration; printing, assembly and finishing may require separate processes.
Watch the Machine in Action
Watch LZ-6090 Small CNC Router for Signs and Engraving demonstration
Demonstration of the model or configuration shown on the original product page. Accessories and operating setup are confirmed for each order.
Watch on YouTubeA small-format CNC router for compact signage parts, engraving and prototype work. The standard aluminum T-slot table with PVC protection can be configured with an optional water-tank arrangement for suitable wet-machining applications.
Configuration & Options
Core configuration
- 2.2 kW water-cooled spindle
- Aluminum T-slot table with PVC protective layer
- Cast-iron structure and integrated control enclosure
- XYZ ball-screw transmission and stepper drives
- NC Studio controller
Options & Order Selection
- Stainless water-tank cooling arrangement for suitable metal or stone work
- Rotary attachment for suitable cylindrical components
- DSP or Mach3 controller configuration
- Wireless handwheel and application-specific fixtures
Confirm the selected spindle, controller, workholding, accessories and electrical supply in the quotation.
Technical Specifications
| Model | LZ-6090 |
|---|---|
| Working area (X × Y) | 600 × 900 mm |
| Spindle | 2.2 kW water-cooled |
| Z travel reference | 200 mm |
| Worktable | Aluminum T-slot + PVC; water tank optional |
| Transmission | XYZ ball screws |
| Power supply reference | 220V single phase, 50/60Hz; confirm for the order |
Working area and Z travel do not specify cutting thickness. Usable clearance and machining depth depend on tooling, fixtures and the material.
Applications
- Small sign lettering and engraved plaques
- Acrylic, MDF and PVC parts after tooling review
- Suitable wet engraving with the optional water-tank system
Share the exact material, thickness, drawing and required finish for tooling and workholding evaluation.
Explore the related industry solution
Frequently Asked Questions
Is the water tank in the photograph standard?
The hero photograph shows the water-tank configuration. The listed standard table is aluminum T-slot with PVC protection; specify the water-tank option when requesting a wet-machining setup.
Can you test my material before I order?
Yes. Request a free sample test with the material specification, drawing, thickness and desired finish. Sample shipping arrangements are agreed separately.
How do I select spindle power and accessories?
Share the largest part, material, machining operations and production needs. We review the job and sample results before specifying spindle power, tooling, workholding and accessories.
What support is available?
English manuals, videos and remote training support installation and operation. Delivery timing and the scope of technical support are agreed for your order.
