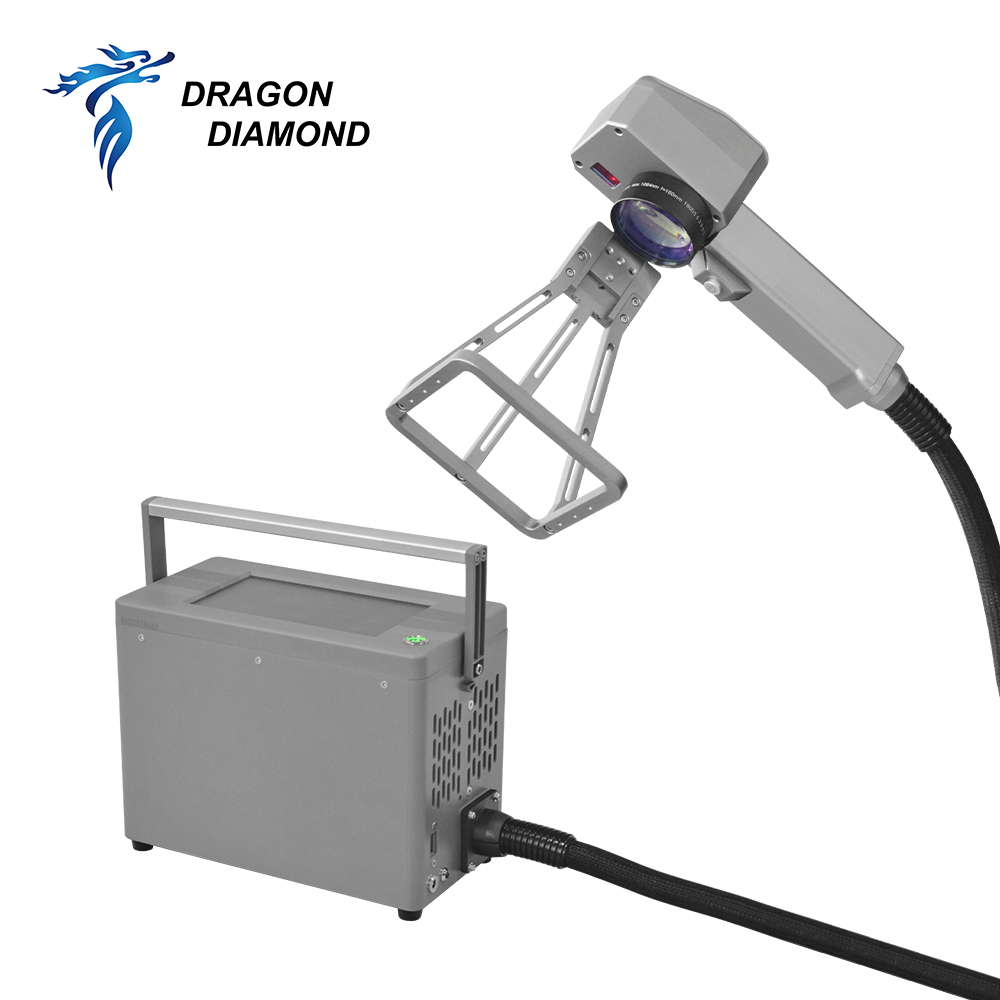

DRAGON DIAMOND CNC
Item NO.:
LZ-HFM
| Moudel Number | Q8A-20 | Q8A-30 | Q8A-50 |
| Output Power | 19.5W | 26.5W | 50W |
| Laser Beam Quality M² | ≤1.4 | ||
| Pulse Repetition Rate | 27-60kHz | ||
| Laser Wavelength | 1064±5 | ||
| Power Stability | <3% | ||
| Marking Range | 75mm | ||
| Marking Depth | ≤1mm | ||
| Marking Speed | ≤10000mm/s | ||
| Repeated Accuracy | ±0.005 | ||
| Min. Marking Width | 0.1mm | ||
| Min. Marking Heigth | 0.15mm | ||
| Continuous Working Hours | 6-8 | ||
| Cooling Method | Air Cooling | ||
| Controller System | linux | ||
Related Tags :

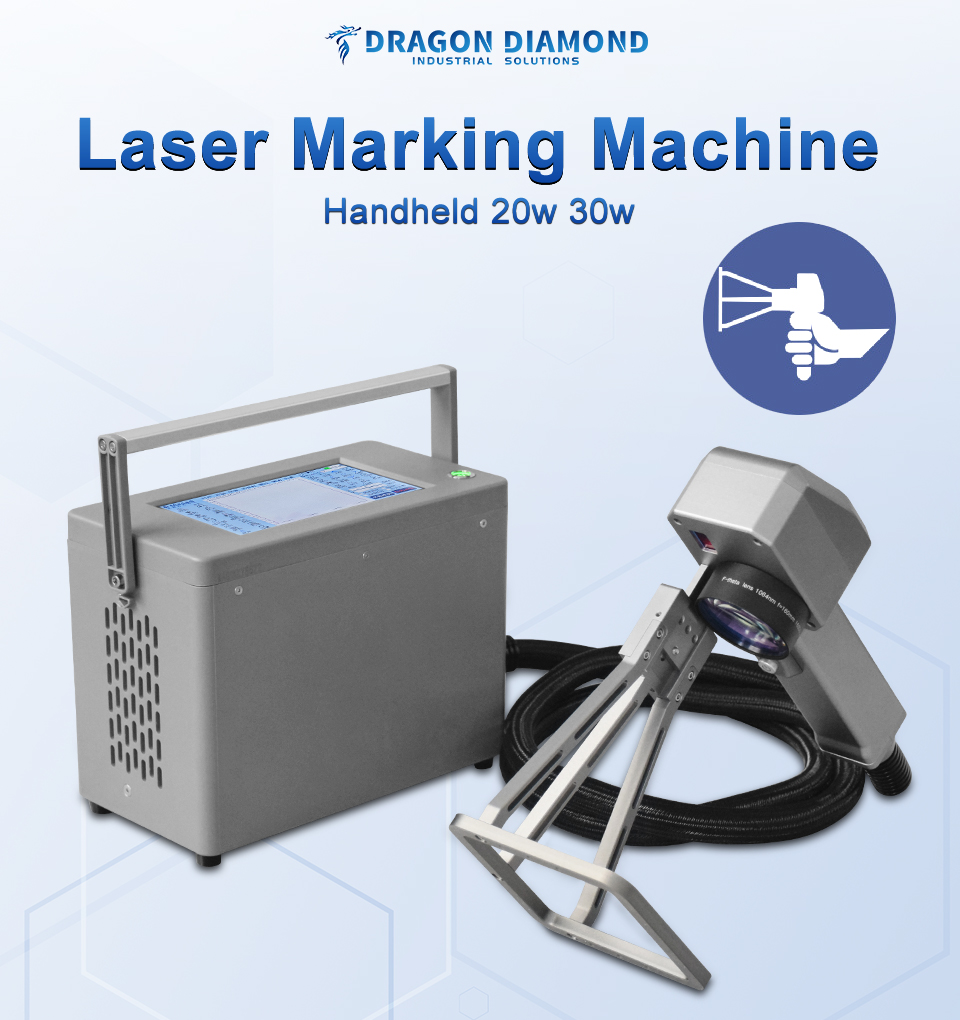

Handheld 20W 30W Fiber Lase Marking Machine for PVC Plastic Stainless Steel Metal Engraving Laser Fiber laser generator Output power 20W/30W Marking range 70×70mm,100×100mm(Optional) Deflection seismic mirror High-precision two-dimensional scanning system Laser wavelength 1064mm Focus the lens 130mm Marking speed ≤7000mm/s Master control Integrated motherboard, 8-inch capacitor fully bonded to the screen operating system Linux system Marking type of engraving Redlett Postionen, Foxin Line width 0.03mm Repeatable positioning accuracy 0.01mm Targeting method Red light positioning, focusing The number of engraved character lines The number of engraved character lines Print speed 800 characters (related to material and printed content) Front Chinese and English, numbers, Chinese Traditional and other standard fonts File format BMP,DXF,HPGL,JPEG,PLT Barcodes CODE39,CODE128,CODE126,QR110V/ Power supply 220VAC,324Wh15Ah Power consumption ≤250W Operating temperature 0-40° Total weight 8-8.8kg (8kg for plug-in version, 8.8kg for battery version)
