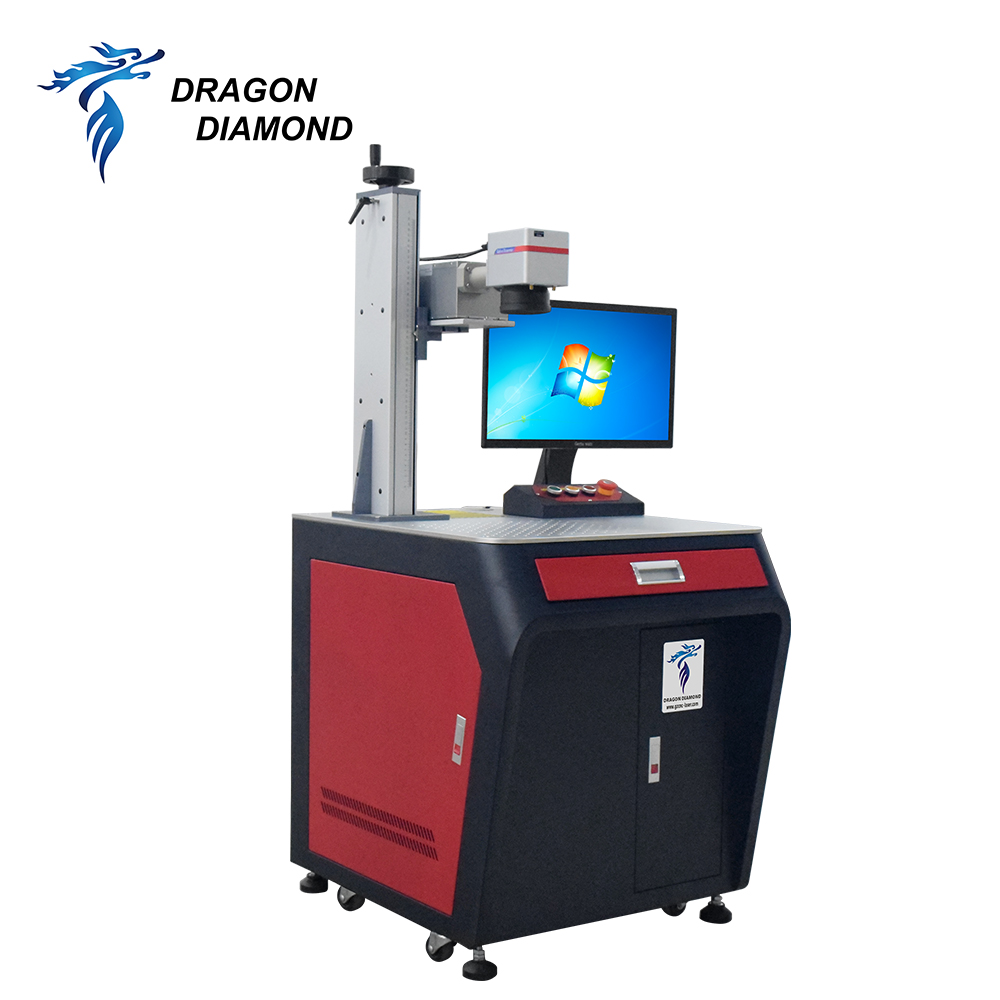

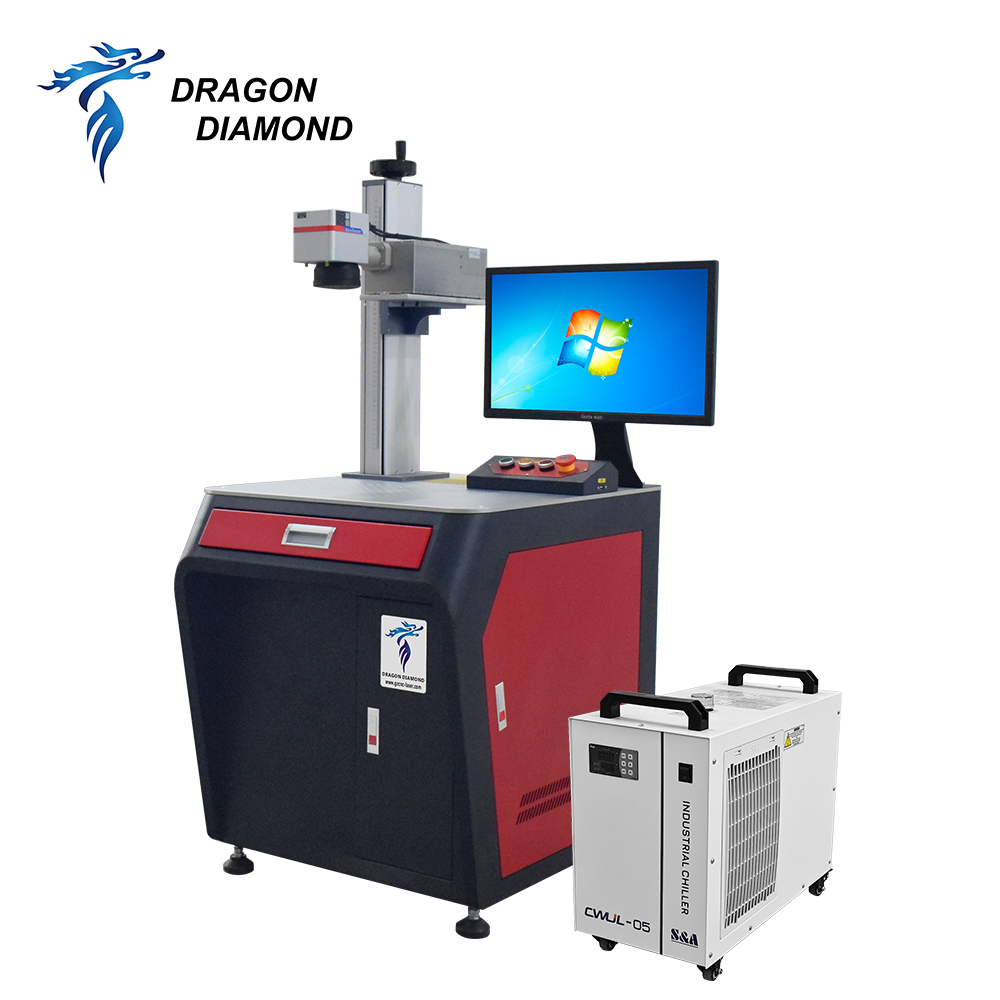

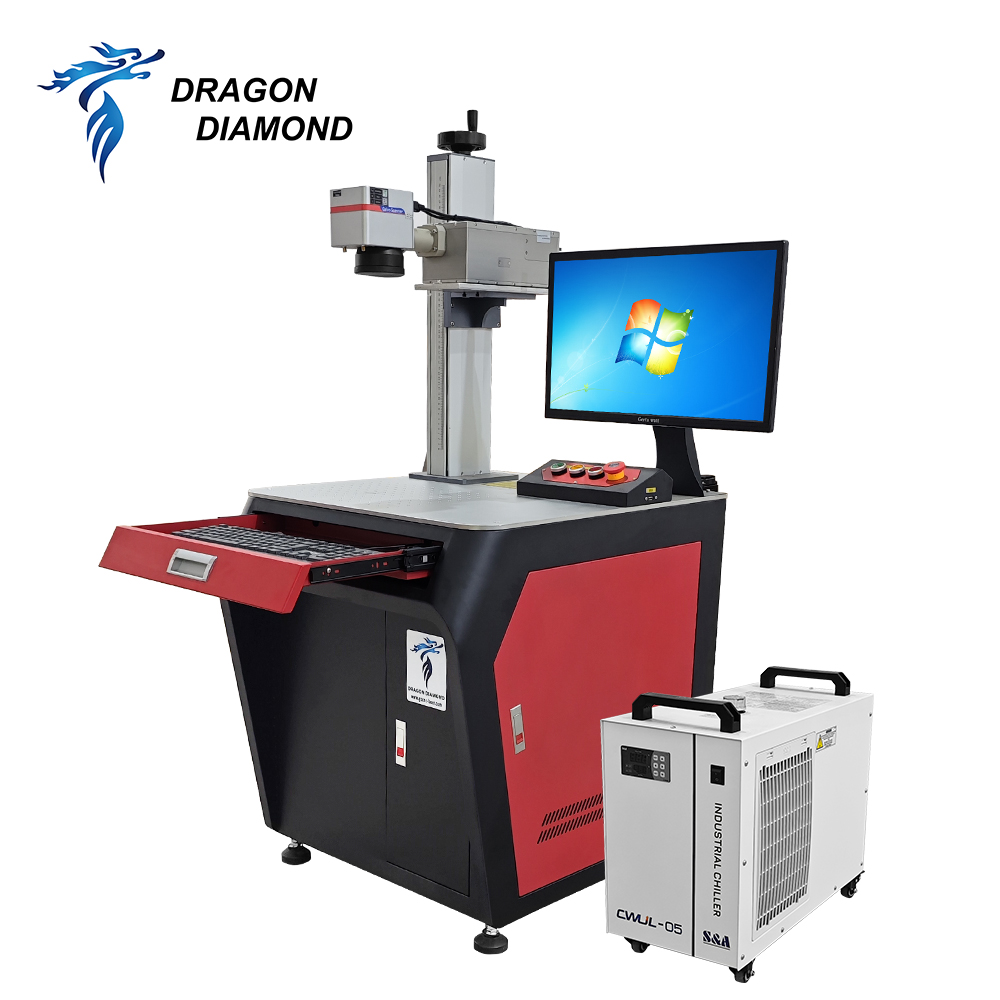

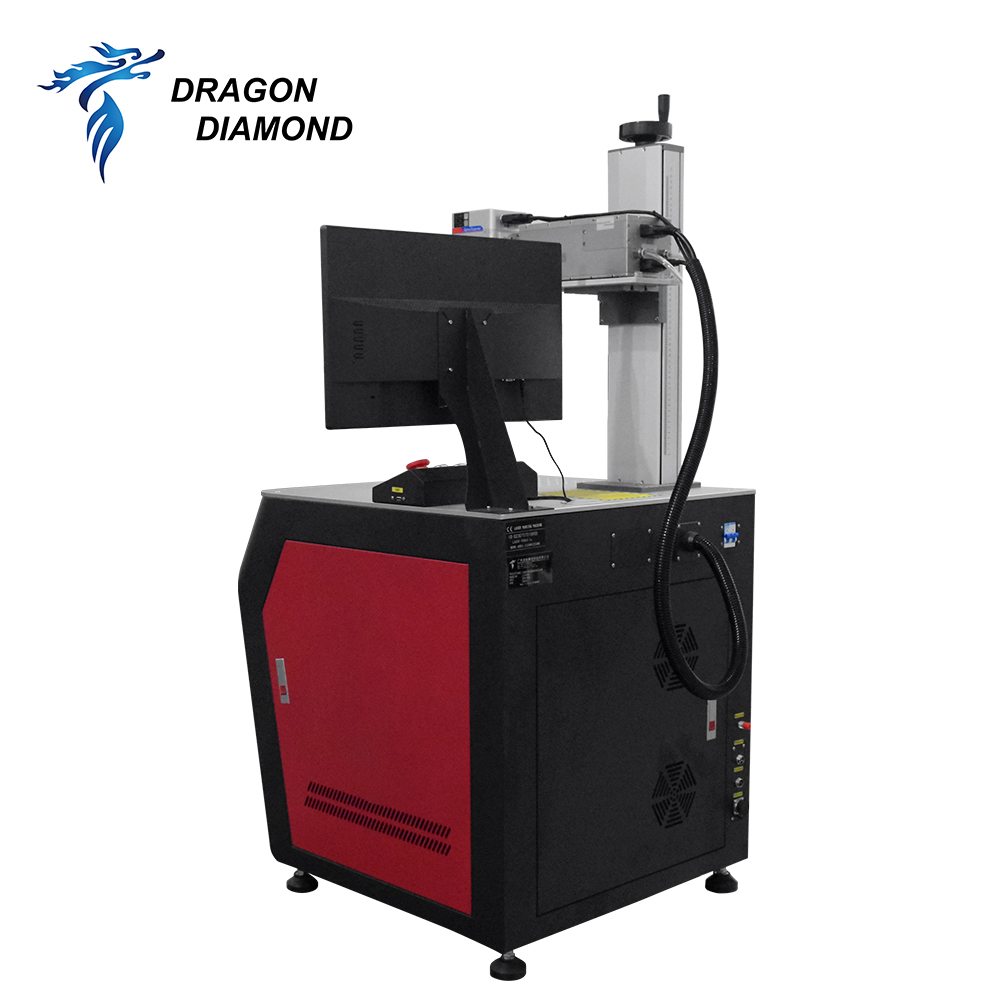

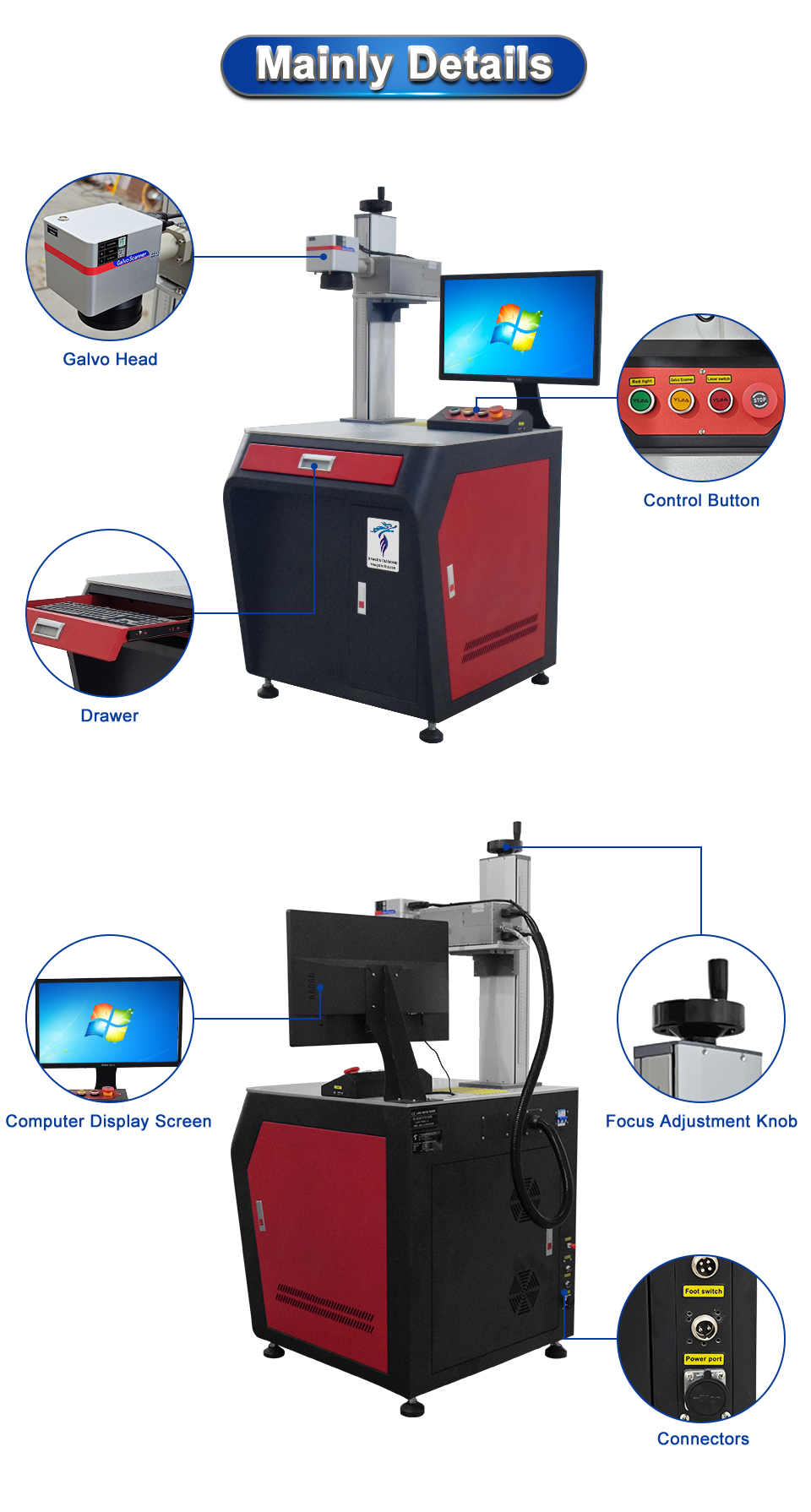

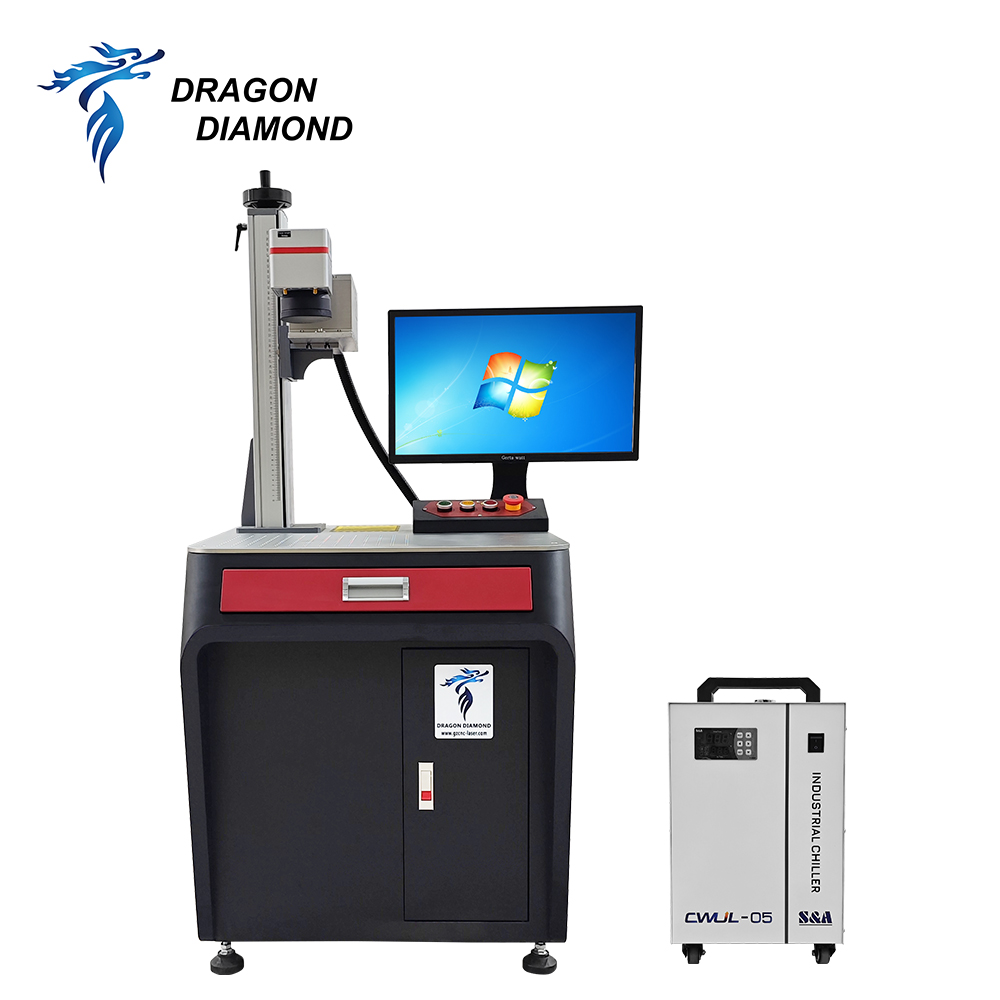

UV Laser Marking Machine with CCD 3w 5w 10w 15w Engraving Cutting Machine

20W Mopa fiber color laser marking machine

20w Fiber laser jewelry color marking machine

CO2 Laser Cutting Machine For Non-Metal Materials Wood 30W 60W

CNC Wood Lathe Engraving Machinery Turning Rotary

CNC Foam Board Contour Cutting Machine with CCD Camera

CNC Foam Contour Cutting Machine with CCD Camera PRODUCT PARAMETER NO. Model Lz-1325-CCD 1 Working Area  1300x2500x200mm               2 Packing Size 3180x2130x1880mm 3 Working Table T-Slot Aluminum Table/Vacuum Table 4 Control System CCD professional system 5 CCD Function Automatic edge inspection, contour cutting 6 CCD Pixels 130W 7 Spindle 3.5KW Air Cooling Spindle/3KW Water cooling Spindle 8 Cooling System Air Cooling/Water Cooling 9 Inverter Sunfar 10 Transmission Type X,Y axis gears pinion, Z axis with ø20mm ball screws 11 Guide Rail Taiwan HIWIN Square rail 12 Ball Screw Taiwan TBI ball screw 13 Drive System Leadshine stepper motor 14 Body  Welded steel T type structure as a whole 15 Spindle Speed 0-18000RPM/0-24000RPM 16 Editing Software Artcam/Type3,other CAD/CAM 17 Traveling Speed 10m/min 18 Working Speed 8m/min 19 Reposition Accuracy 0.03mm 20 Command Code G Code*.u00*.mmg*.plt 21 Voltage AC220V/380V,50Hz/60Hz 22 Warranty 24 months 23 Optional parts   1.Dust Collects 2.Water Chiller CW3000 3.rotary axis 4.Servo Motor 5.different working area 6..semi-auto lubrication system 7.different power spindle APPLICATION INDUSTRY 1.Advertising Industry Signage,Logo,Badges,Display Board,Meeting Sign Board,Billboard Advertising Filed,Sign Making,Acrylic Engraving and Cutting,Crystal word marking,Blaster Molding,And other advertising materials. 2.Artwork and Decoration Industry Wood crafts,Gift box,Jewelry box. 3.Die Industry A sculpture of copper,Aluminum,Iron and other Metal molds.as well as artificial marble,Sand,Plastic sheeting,PVC pipe,and other non-metallic mold. 4.Wood Furniture Industry Door;Cabinets,Tables,Chairs.Wave Plate,Antique furniture,Wooden door,Screen,Craft sash,Compostie gates,Cupboard doors,Interior doors,Sofa legs,Headboards and so on. 5.Others Relief sculpture and 3D engraving and Cylindrical object. PRODUCT DETAILS 1.The gantry is welded with 8mm thickened square tube. Accuracy is within 0.02mm. More than 90% higher than the manufacturing level of peers   2.Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps,convenient and save fixing time.   3.The professinal CCD camera can scan the patterns on the advertising sheet and cut along the edge automatically.   4.Gantry thickness 8mm. Using heavy-duty columns. Ensure that the machine body is stable during high speed and heavy cutting without jitter.   5.Imported Rack and Pinion Drive and Hiwin linear guide rail ensure accuracy and high precision.   6.AII the connecting cables have been placed neatly with the label of cable information.It is very convenient to help customer to check.   7.Leadshine Stepper motor runs smoothly, which creates a none vibration phenomenon even in low speed and heavy load conditions. Hybrid Servo motor and Servo Motor are optional.   8.Manual/Automatic Oil-injection system provides an easy maintenance working environment.   9.Tank Chain is designed for fireproof and avoided wear of wires and other components, protecting wires.   10.Dust collector will clean up the carving residuum and make the operations tidier and more convenient.   11.Control System:Basic function of CNC Router + CCD Camera Contour cutting function, CAD/CAM designing software, such as type3/ ucancam/ artcam are part of the machine package.

CNC Door Wood Engraving Machine with Vacuum Cutting Table

CNC Door Wood Engraving Machine with Vacuum Cutting Table PRODUCT PARAMETER NO. Model Lz-1313B 1 Working Area  1300x1300x200mm               2 Packing Size 3200x2200x1800mm 3 Working Table Vacuum Table 4 Spindle 3KW Water cooling Spindle 5 Cooling System Water cooling 6 Control System NC Studio 7 Inverter Sunfar 8 Transmission X,Y axis rack drive,Z axis screw drive 9 Guide Rail Taiwan Square rail 10 Ball Screw TBI ball screw from Taiwan 11 Drive System Leadshine driving system and stepper motor 12 Body  Welded steel T type structure as a whole 13 Spindle Speed 24000RPM 14 Control Software Artcam/Type3,other CAD/CAM 15 Traveling Speed 10m/min 16 Working Speed 8m/min 17 Reposition Accuracy 0.03mm 18 Command Code G Code*.u00*.mmg*.plt 19 Voltage AC220V/380V,50HZ/60HZ   PRODUCT DESCRIPTION 1.Single Head with Two Spindles Double heads with two spindles is optional.Can be finished multiple process. 2.Vacuum table Vacuum adsorption system with 5.5kw Water cycle vacuum pump,vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time. 3.Stronger machine frame design Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for long time, avoid broken knife, more stable,durable. 4.Transmission System Imported Hiwin, Taiwan Linear square guide rail with Racks type transmission for X and Y axis, higher running speed and efficiency ,saving cost z- axis with precision ball screw, high precision and more durable. 5.Gantry The Y axis transmission mode for stepping two-way drive, more eficient, simplified carpentry and maintenance of the processing of the maintenance work. 6.Spindle and Inverter Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torque，matched with high-performance frequency inverter. 7.Stepper Motor and Driver China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min. 8.Dust Collector The dust collection system can collect the saw dust and chips while working to keep a cleaning working environment. It dose good for the human health and equipment. 9.NC Studio Control System and Software Compatibility Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to improper size. APPLICATION INDUSTRY 1.CRAFT INDUSTRY Wood-animal, Wood crafts, Gift box, Jewelry box, Family furnishings. 2. FURNITURE Wooden door cabinet office and wood furniture, Table chairs, Composite gates, Dining table 3. SHEET METAL PROCESSING Insulating parts, Plastic chemical components, EVA (ethylene), MDF 4. ADVERTISING INDUSTRY Advertising signs, Logo making, Acrylic carving,Crystal word making, Company logo

CNC Router Wood Cutter Vacuum Table Furniture Cutting Machine

6090 Camera Laser Cutting Engraving Machine Crafts Products
