LZ-F20W MOPA Fiber Laser Marking Machine

Name: LZ-F20W MOPA Fiber Laser Marking Machine
Brand: Dragon Diamond

LZ-F20W MOPA fiber laser marking machine for color marking on suitable stainless steel, metal personalization and everyday 2D identification. Choose a 20W, 30W or 50W configuration and match the lens to your artwork and workpiece.

Equipment selection · Free sample testing · Technical support

Get a Quote View Marking Samples

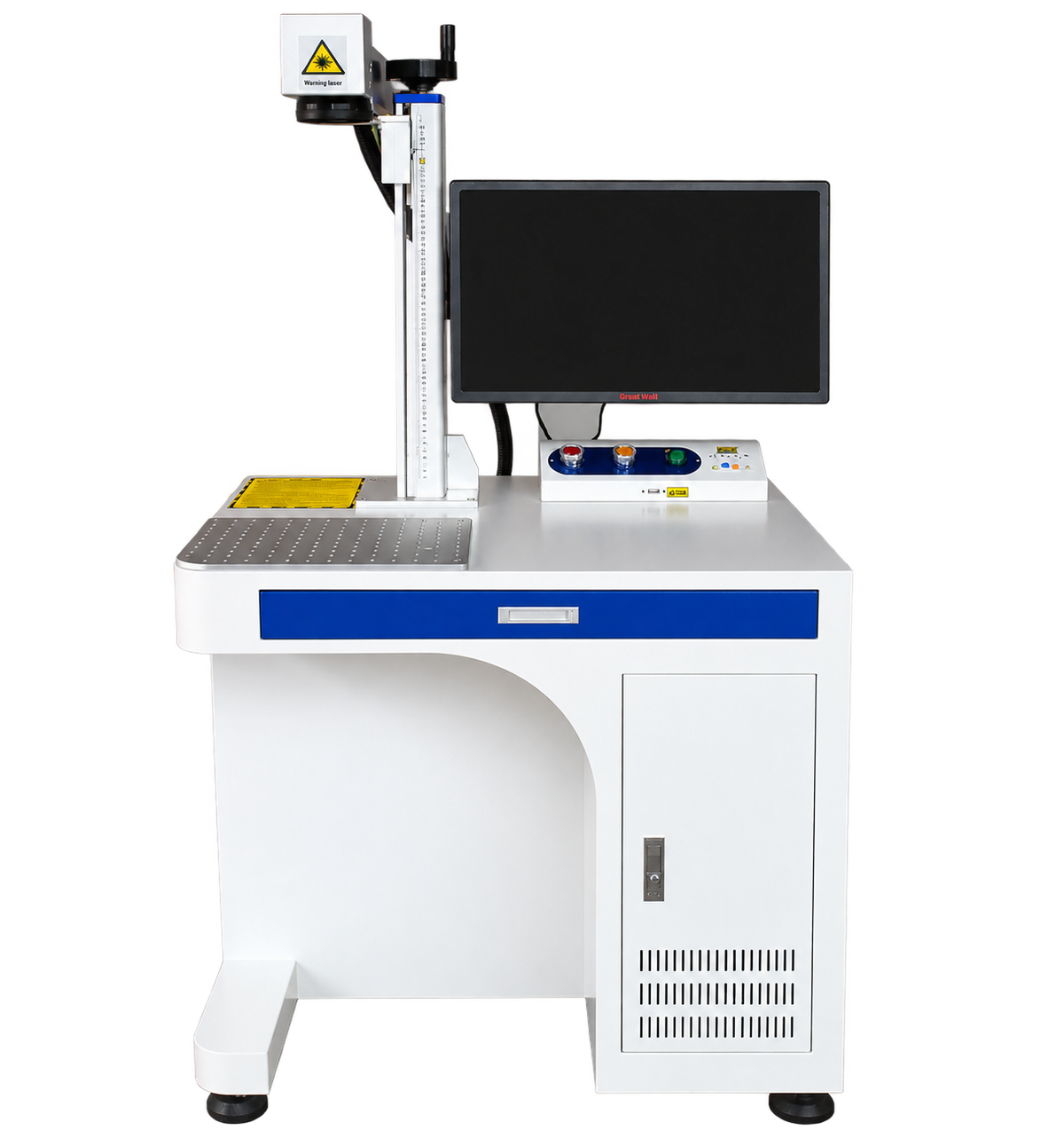

LZ-F20W MOPA fiber laser marking machine with cabinet workstation and manual height adjustment — Machine shown for reference. Final configuration is specified in your quotation.

Marking Applications

Explore color marking on suitable stainless steel, decorative metal designs, and everyday logo and text marking. Color results depend on the alloy, surface finish and selected laser settings.

Color Marking on Stainless Steel

Decorative Metal Designs

Metal Logo & Text Marking

Application photographs from the original product page. Confirm actual results with a sample test on your material and selected configuration.

Request a Free Sample Test

MOPA Fiber Laser Marking Demonstration

Watch the MOPA marking demonstration on YouTube

MOPA Marking for Metal Products

Produce decorative patterns, names, logos and identification marks on suitable metal surfaces. Color marking requires a compatible stainless-steel grade and carefully tested settings; the exact color and appearance can vary with the material and surface finish.

MOPA fiber laser configuration selected for the requested marking result.
Manual height adjustment for setting the working distance.
Built-in air cooling, JCZ control and EZCAD marking software.
Optional rotary device and moving table, subject to workpiece compatibility.

Configuration Options

Model reference	LZ-F20W + MOPA
Laser type	MOPA fiber laser
Power options	20W / 30W / 50W
Marking field options	110 × 110 mm / 200 × 200 mm / 300 × 300 mm, with the corresponding lens configuration
Cooling	Built-in air cooling
Control and software	JCZ / EZCAD
Focus setup	Manual working-distance adjustment
Optional accessories	Compatible rotary device and moving table
Laser source and pulse settings	Source model, wavelength, pulse-width range and frequency range confirmed in the quotation for the selected power

Materials & Sample Testing

Typical projects include stainless-steel decorative plates, metal gift lettering and suitable coated-metal logo marking. Send the material grade, coating, dimensions and artwork so we can evaluate contrast, color and processing time. Some plastics require a specific formulation and a sample test.

Lens selection affects the working distance, marking area and achievable detail. Curved or cylindrical parts require a suitable fixture or optional rotary arrangement, confirmed for the individual application.

Packaging, Delivery & Technical Support

Confirm before shipping

We agree the laser power, lens, electrical requirements, accessories, packing and shipping method in your quotation. Delivery time is negotiated for each order.

Installation & training

English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.

Spare parts & equipment planning

We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.

Frequently Asked Questions

How do I choose the right laser marking machine?

Start with your material, coating, marking area, required contrast and production volume. Compare Fiber, CO2 and UV options, then confirm the result with a sample test.

Can you test my material before I order?

Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.

Can the configuration be customized?

We help select the listed power and lens options. Tell us your workpiece dimensions, electrical supply and any rotary marking requirements so we can confirm a compatible configuration.

What is the price and delivery time?

We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.
