LZ-FM50 3D Dynamic Focus Fiber Laser Marking Machine

Name: LZ-FM50 3D Dynamic Focus Fiber Laser Marking Machine
Brand: Dragon Diamond

3D dynamic-focus fiber laser marking for suitable stepped, concave and convex metal surfaces. Choose 50W or 100W and evaluate the workpiece geometry, marking field and finish with a sample test.

Equipment selection · Free sample testing · Technical support

Get a Quote View Marking Samples

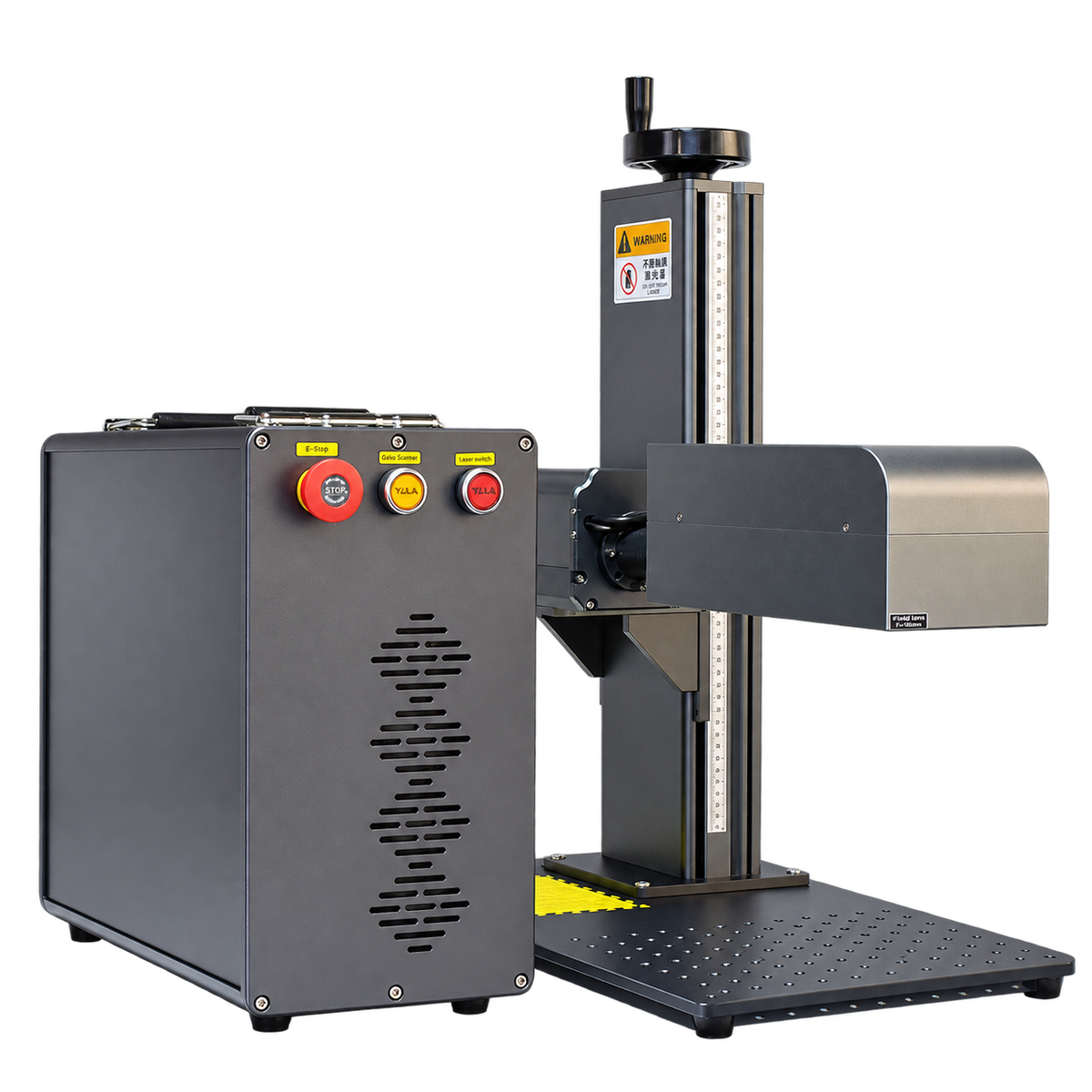

LZ-FM50 3D Dynamic Focus Fiber Laser Marking Machine — source photograph with background removed — Machine shown for reference. Final configuration is specified in your quotation.

Marking Applications

Explore personalized metal bottles, curved stainless-steel surfaces and relief engraving on metal plates. Workpiece geometry, fixtures and engraving depth are evaluated through sample testing.

Personalized Metal Bottles — AI-generated application illustration — Personalized Metal Bottles

Curved Stainless Steel — AI-generated application illustration — Curved Stainless Steel

Metal Relief Engraving — AI-generated application illustration — Metal Relief Engraving

AI-generated application illustrations. Confirm actual results with a sample test on your material and selected configuration.

Request a Free Sample Test

3D dynamic-focus fiber laser marking for suitable stepped, concave and convex metal surfaces. Choose 50W or 100W and evaluate the workpiece geometry, marking field and finish with a sample test.

Configuration & Options

3D dynamic focusing for workpieces with changing surface height
Applications include suitable stepped, concave and convex metal surfaces
50W / 100W source power selection
Rotary attachment and XY worktable options depend on the job

Technical Specifications

Model options	LZ-FM50 · 3D Dynamic Focus
Laser power options	50W / 100W
Source model reference	LZ-FM50
Laser type	Fiber laser
Power options	50W / 100W
Focusing	Manual initial focus adjustment; 3D galvanometer dynamic focusing during marking
Application geometry	Suitable stepped, concave and convex surfaces
Rotary fixture	Optional
XY worktable	Optional
Dynamic focus-height range	Defined in the quotation for the workpiece
Laser source	Raycus
Wavelength	1064 nm
Marking field options	100 × 100 / 200 × 200 / 300 × 300 mm; one 3D galvanometer supports all three fields

Application & Process Selection

Identification and decorative marking on suitable curved and stepped metal workpieces. Actual focusing range, mark consistency and work holding are confirmed from your sample.

Set the initial focus manually. The 3D galvanometer retains dynamic focusing during marking. Dynamic focus follows changes in surface height within the selected system’s usable range. Send workpiece geometry, dimensions and the marking design to confirm optics, software and fixtures; no universal curve or depth capability is assumed.

Confirm laser source, lens, cooling, electrical supply, software, fixtures and included accessories in your quotation. Delivery timing is agreed for each order.

Product Demonstration

Watch the original product demonstration. Equipment shown is a configuration reference; supplied equipment is specified in your quotation.

Packaging, Delivery & Technical Support

Confirm before shipping

We agree the laser power, lens, electrical requirements, accessories, packing and shipping method in your quotation. Delivery time is negotiated for each order.

Installation & training

English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.

Spare parts & equipment planning

We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.

Frequently Asked Questions

How do I choose the right laser marking machine?

Start with your material, coating, marking area, required contrast and production volume. Compare Fiber, CO2 and UV options, then confirm the result with a sample test.

Can you test my material before I order?

Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.

Can the configuration be customized?

We help select the listed power and lens options. Tell us your workpiece dimensions, electrical supply and any rotary marking requirements so we can confirm a compatible configuration.

What is the price and delivery time?

We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.
