LZ-FM Handheld Fiber Laser Marking Machine

Portable handheld fiber laser marking with 20W, 30W and 50W power options, an integrated screen and a battery configuration for marking suitable metal workpieces. Confirm your material and artwork with a free sample test.

Equipment selection · Free sample testing · Technical support

Get a Quote View Applications

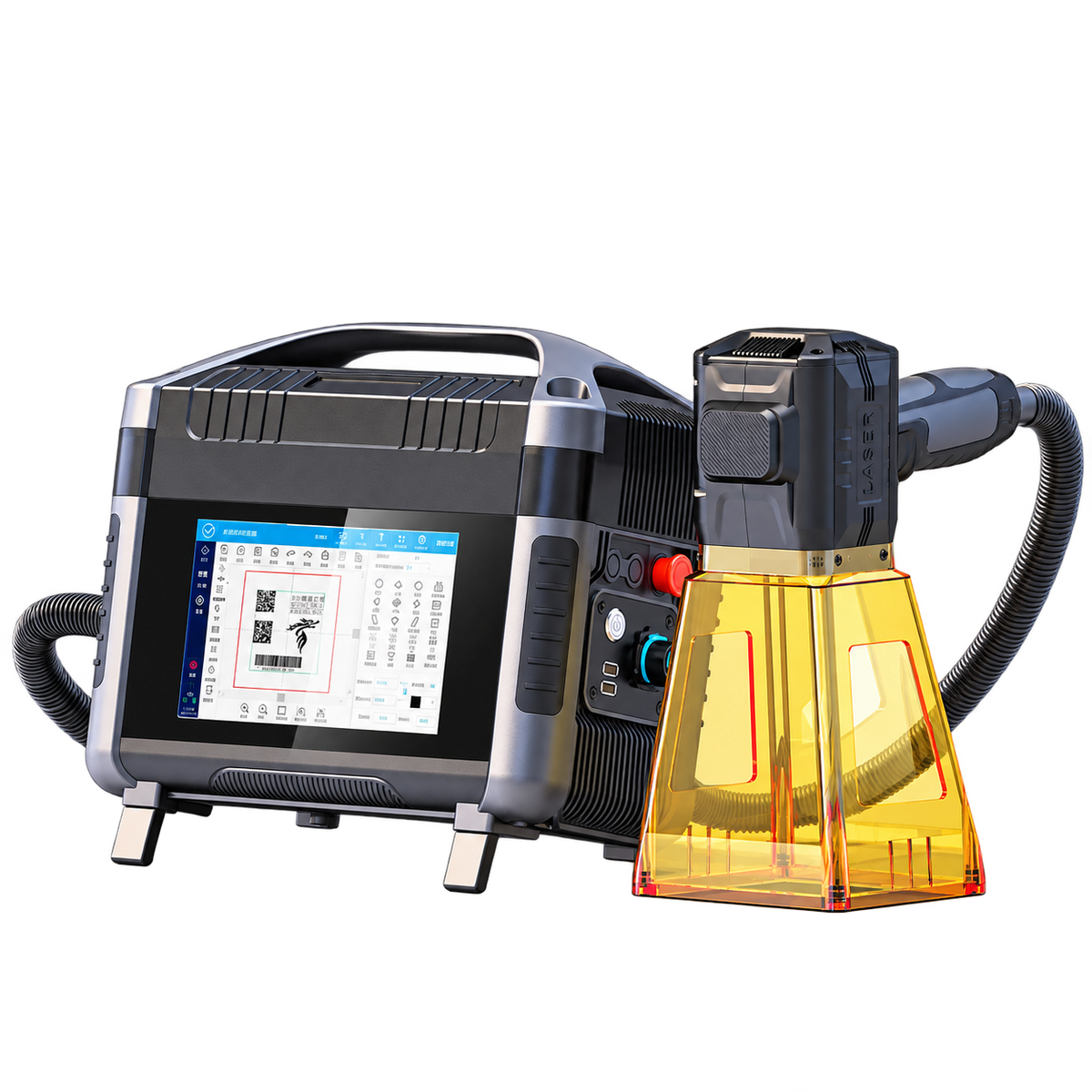

LZ-FM handheld fiber laser marking machine with integrated screen and handheld marking head — Machine shown for reference. Final configuration is specified in your quotation.

Marking Applications

Bring handheld marking to outdoor installation sites, including metal doors, window frames and architectural decoration. Confirm the surface, marking position and required finish with a sample test.

Outdoor application illustration of installed metal doors and window frames — Outdoor Doors & Window Frames
Installed metal frames · On-site identification

Outdoor application illustration of installed stainless-steel railing and architectural decoration — Architectural Decoration Projects
Metal railings · Decorative metal components

AI-generated application illustrations. Confirm actual marking results with a sample test.

Request a Free Sample Test

Portable Marking for Large and Installed Parts

Bring the handheld marking head to suitable workpieces when positioning the part under a desktop marker is impractical. Applications include installed outdoor metal doors and window frames, architectural metal decoration, metal plates and stainless-steel components. Confirm material composition, surface finish, marking access and the required result before ordering.

Configuration & Options

Choose 20W, 30W or 50W laser power for the proposed application.
Select the battery configuration for portable operation; confirm the supplied battery and charger in your quotation.
70 × 70 mm marking field; a 100 × 100 mm field is optional.
Integrated Linux control system, 8-inch screen and red-light positioning.

Power, lens, battery, electrical supply and included accessories are specified for each order. Battery runtime and marking cycle time depend on the configuration and job.

Technical Specifications

Model	LZ-FM
Laser type	Fiber laser
Output power options	20W / 30W / 50W
Wavelength	1064 nm
Machine weight	8.8 kg
Marking field	70 × 70 mm; 100 × 100 mm optional
Cooling	Air cooling
Control system	Linux with integrated 8-inch screen
Positioning	Red-light positioning and focusing
Supported artwork formats	BMP, DXF, HPGL, JPEG, PLT

On-site Marking for Outdoor Projects

For customers taking the handheld marker to installation sites, suitable metal door and window frames, railings and decorative components can be evaluated for identification marking. Confirm access to the marking position, surface treatment, lens contact setup and power configuration for each project.

Material & Artwork Evaluation

Send your exact material, surface treatment, marking dimensions and artwork. We evaluate contrast and finish through sample testing. Plastic suitability depends on composition and must be checked for the intended process.

Compare fiber laser marking machines · Compare Fiber, CO2 and UV marking

Handheld Marking Demonstration

Watch the handheld marking demonstration on YouTube. The demonstration shows the source configuration; your quotation defines supplied equipment.

Packaging, Delivery & Technical Support

Confirm before shipping

We agree the laser power, lens, electrical requirements, accessories, packing and shipping method in your quotation. Delivery time is negotiated for each order.

Installation & training

English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.

Spare parts & equipment planning

We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.

Frequently Asked Questions

How do I choose the right laser marking machine?

Start with your material, coating, marking area, required contrast and production volume. Compare Fiber, CO2 and UV options, then confirm the result with a sample test.

Can you test my material before I order?

Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.

Can the configuration be customized?

We help select the listed power and lens options. Tell us your workpiece dimensions, electrical supply and any rotary marking requirements so we can confirm a compatible configuration.

What is the price and delivery time?

We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.
