LZ-UV JPT UV Laser Marking Machine with Electric Lift

Name: LZ-UV JPT UV Laser Marking Machine with Electric Lift
Brand: Dragon Diamond

JPT 355 nm UV marking with electric height adjustment and water cooling for suitable plastics, glass and personalized items. Choose LZ-UV3W, LZ-UV5W or LZ-UV10W after a material sample test.

Equipment selection · Free sample testing · Technical support

Get a Quote View Marking Samples

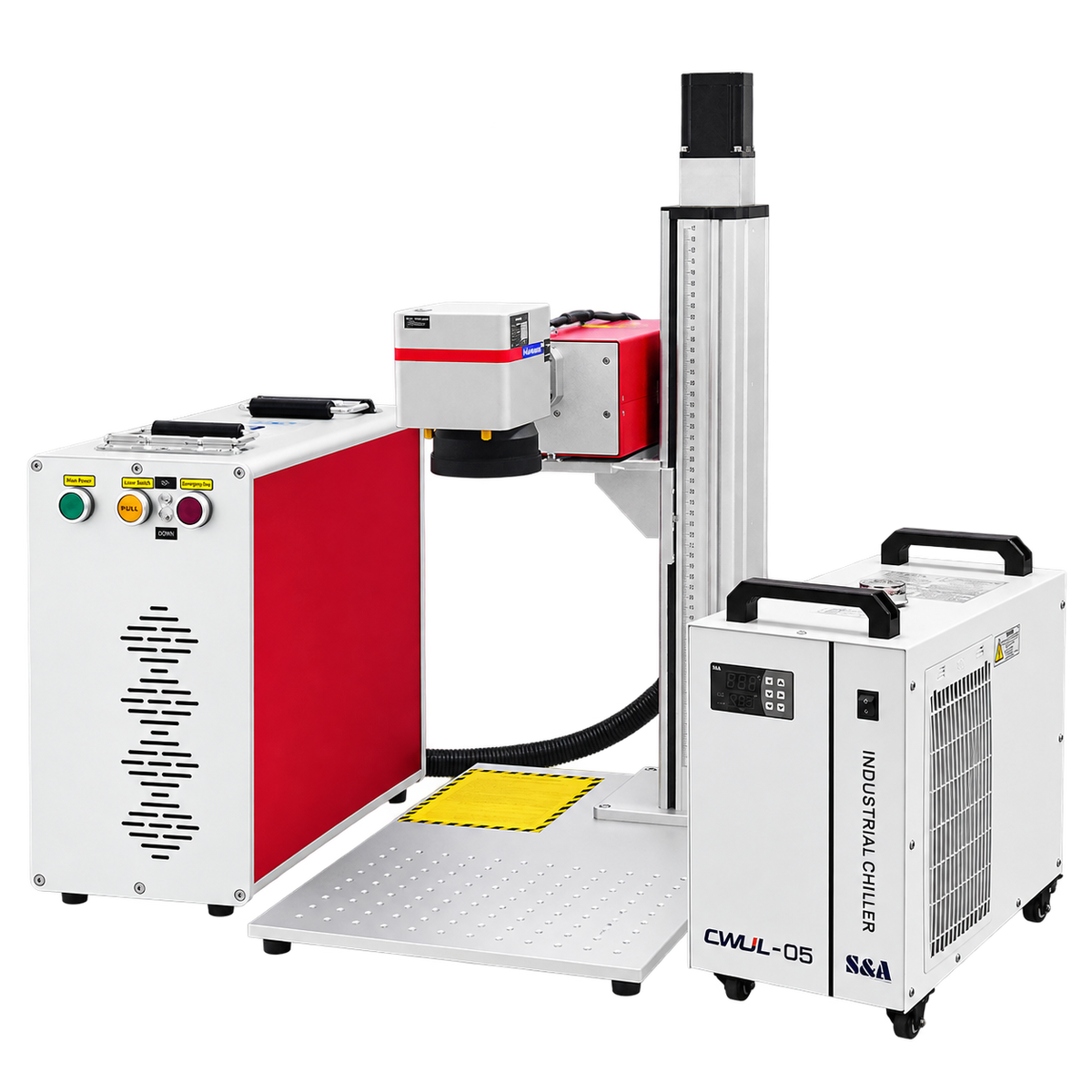

LZ-UV JPT UV Laser Marking Machine with Electric Lift — source photograph with background removed — Machine shown for reference. Final configuration is specified in your quotation.

Marking Applications

Explore UV marking applications on packaging, plastic tags, leather, glass and suitable gift materials.

Plastic Key Tags - AI-generated UV marking application illustration — Plastic Key Tags

Leather Notebooks - AI-generated UV marking application illustration — Leather Notebooks

Perfume Bottle Lettering - AI-generated UV marking application illustration — Perfume Bottle Lettering

Decorative Wood Gifts - AI-generated UV marking application illustration — Decorative Wood Gifts

AI-generated application illustrations. Confirm actual results with a sample test on your material and selected configuration.

Request a Free Sample Test

JPT 355 nm UV marking with electric height adjustment and water cooling for suitable plastics, glass and personalized items. Choose LZ-UV3W, LZ-UV5W or LZ-UV10W after a material sample test.

Configuration & Options

JPT UV laser source and 355 nm wavelength
Electric lifting column for workpiece height adjustment
Water-cooled reference configuration
EZCAD control; rotary fixtures for rings or compatible cylindrical workpieces are optional

Technical Specifications

Model options	LZ-UV3W / LZ-UV5W / LZ-UV10W
Laser power options	3W / 5W / 10W
Laser source	JPT ultraviolet laser
Wavelength	355 nm
Marking fields listed by power	3W: 110 × 110 mm; 5W: 200 × 200 mm; 10W: 300 × 300 mm; confirm the lens for your application
Repetition frequency	20–80 kHz
Cooling	Water cooling
Software	EZCAD
Electrical supply	220V / 50Hz reference configuration
Listed weight	About 45 kg; confirm the supplied configuration

Application & Process Selection

Glass surface personalization, suitable plastic components and customized gifts. Glass composition, coatings and the desired finish require sample testing.

Surface marking and glass personalization are evaluated on samples. Crystal subsurface or 3D engraving is not included as a general capability without a confirmed process configuration.

Confirm laser source, lens, cooling, electrical supply, software, fixtures and included accessories in your quotation. Delivery timing is agreed for each order.

Product Demonstration

Watch the original product demonstration. Equipment shown is a configuration reference; supplied equipment is specified in your quotation.

Packaging, Delivery & Technical Support

Confirm before shipping

We agree the laser power, lens, electrical requirements, accessories, packing and shipping method in your quotation. Delivery time is negotiated for each order.

Installation & training

English manuals and videos support setup and operation. Our technical team provides remote training and assistance with day-to-day use. On-site training and technical support can be arranged by agreement.

Spare parts & equipment planning

We prepare corresponding spare parts for each machine and help plan compatible equipment for your production workflow.

Frequently Asked Questions

How do I choose the right laser marking machine?

Start with your material, coating, marking area, required contrast and production volume. Compare Fiber, CO2 and UV options, then confirm the result with a sample test.

Can you test my material before I order?

Yes. We provide free sample testing to check the proposed configuration. Send your artwork and material information using the inquiry form; sample shipping arrangements are agreed separately.

Can the configuration be customized?

We help select the listed power and lens options. Tell us your workpiece dimensions, electrical supply and any rotary marking requirements so we can confirm a compatible configuration.

What is the price and delivery time?

We quote according to the selected configuration, accessories and delivery requirements. Lead time is confirmed for your specific order.
