Signs & display panels
Evaluate suitable acrylic and PVC boards for routed lettering, shaped signs and display components. Share the sheet specification and artwork for tooling and workholding advice.
Explore the Industry →SELECT BY MATERIAL & FINISHED PART
CNC Router Machines for Signs, Furniture & Crafts
Plan profile cutting and decorative routing around your materials and drawings. Compare compact routers, vacuum-table models, ATC woodworking machines, multi-tool systems and a stone-routing configuration. Confirm your application with a free sample test.
CNC equipment manufacturing · Sample testing · Training & technical support
Start with what you want to produce
Furniture & woodworking
Plan board profiles, furniture components and decorative routing around your drawings, joint details and required finish.

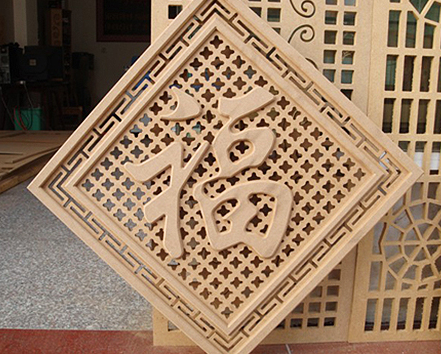

Explore the Industry →Crafts & decorative parts
Review cut-out panels, assembled crafts and routed details. Small features need suitable cutters and support during machining.
Explore the Industry →Find the CNC configuration for your workshop
Compare nine models by working area, tooling and application. Spindle ranges represent configurations available for selection, not multiple spindles supplied together.
GENERAL ROUTING
LZ-1325
1300 × 2500 mm
3.0 kW water-cooled
Standard aluminum + PVC table; vacuum table and pump optional.
View LZ-1325
ATC · WOODWORKING

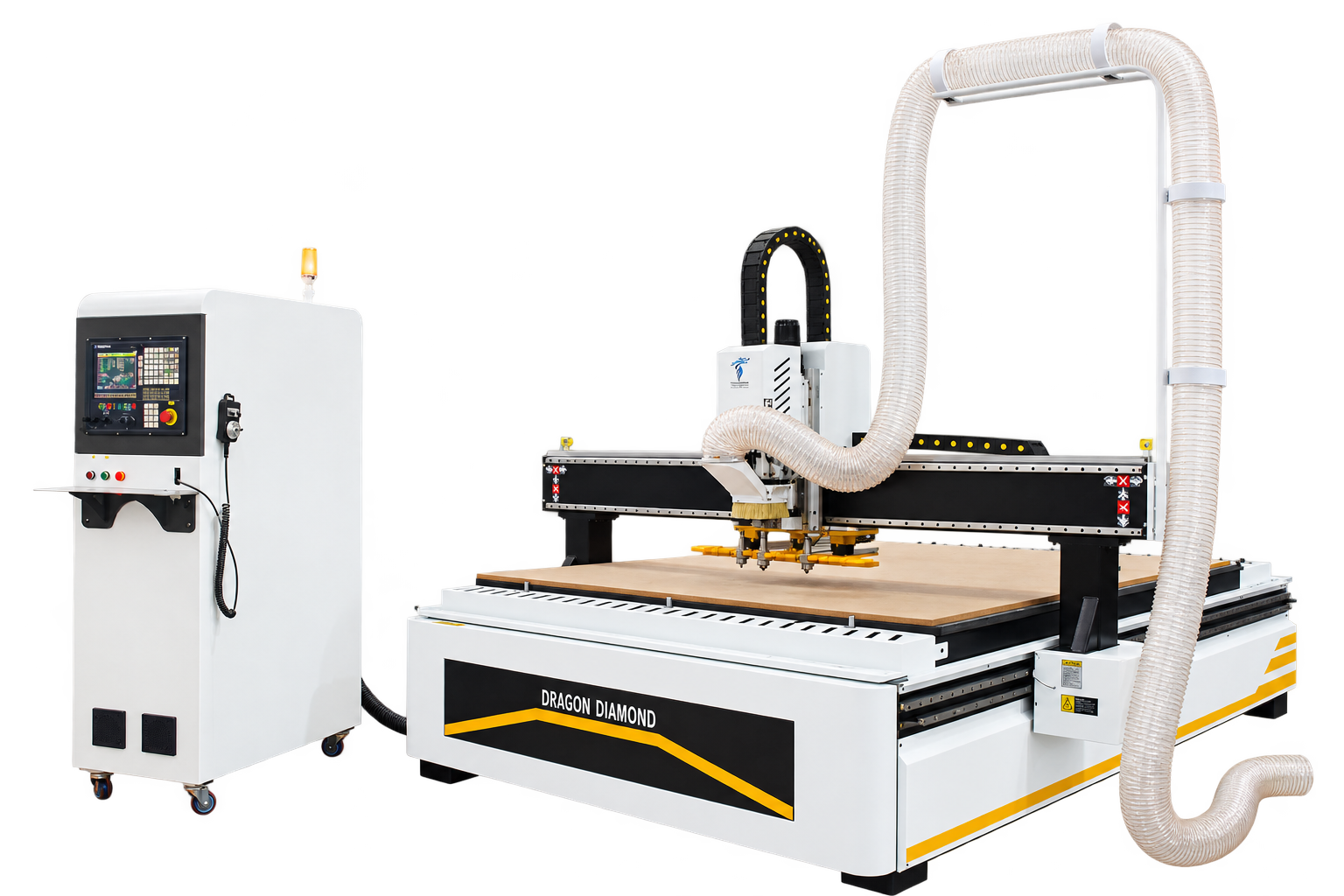

LZ-2030A
2000 × 3000 mm
9.0 kW air-cooled ATC
A large-format automatic tool changing CNC router for cabinet panels, furniture components and decorative woodworking. The 2000 × 3000 mm table supports larger sheet layouts and multi-tool routing jobs.
View LZ-2030A
ATC · WOODWORKING

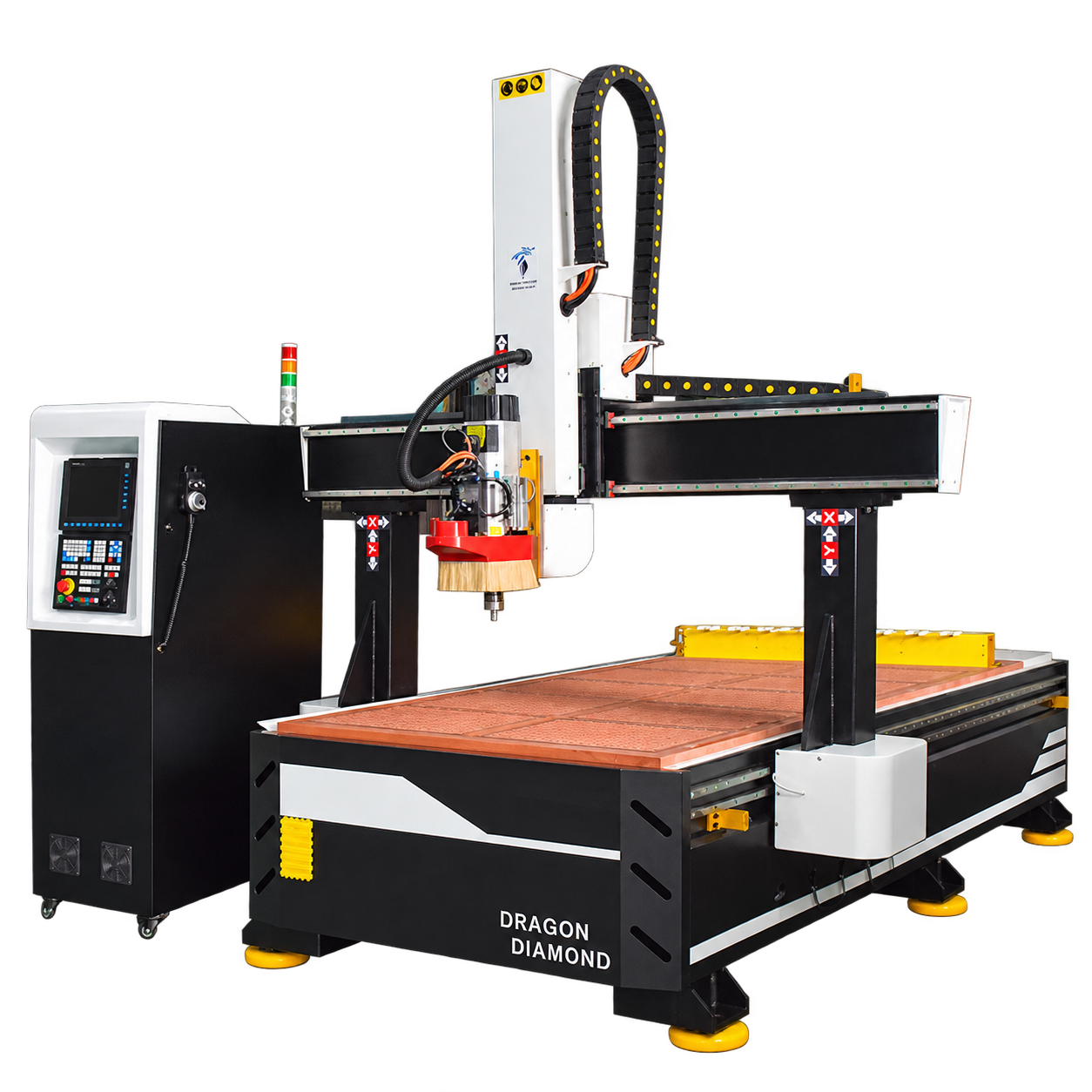

LZ-1325A
1300 × 2500 mm
9.0 kW air-cooled ATC
An automatic tool changing CNC router for standard-size furniture panels, cabinet components and decorative woodworking. A linear tool rack supports jobs that use different cutters for profiling, pockets and routed details.
View LZ-1325A
SIGNAGE · WOODWORKING

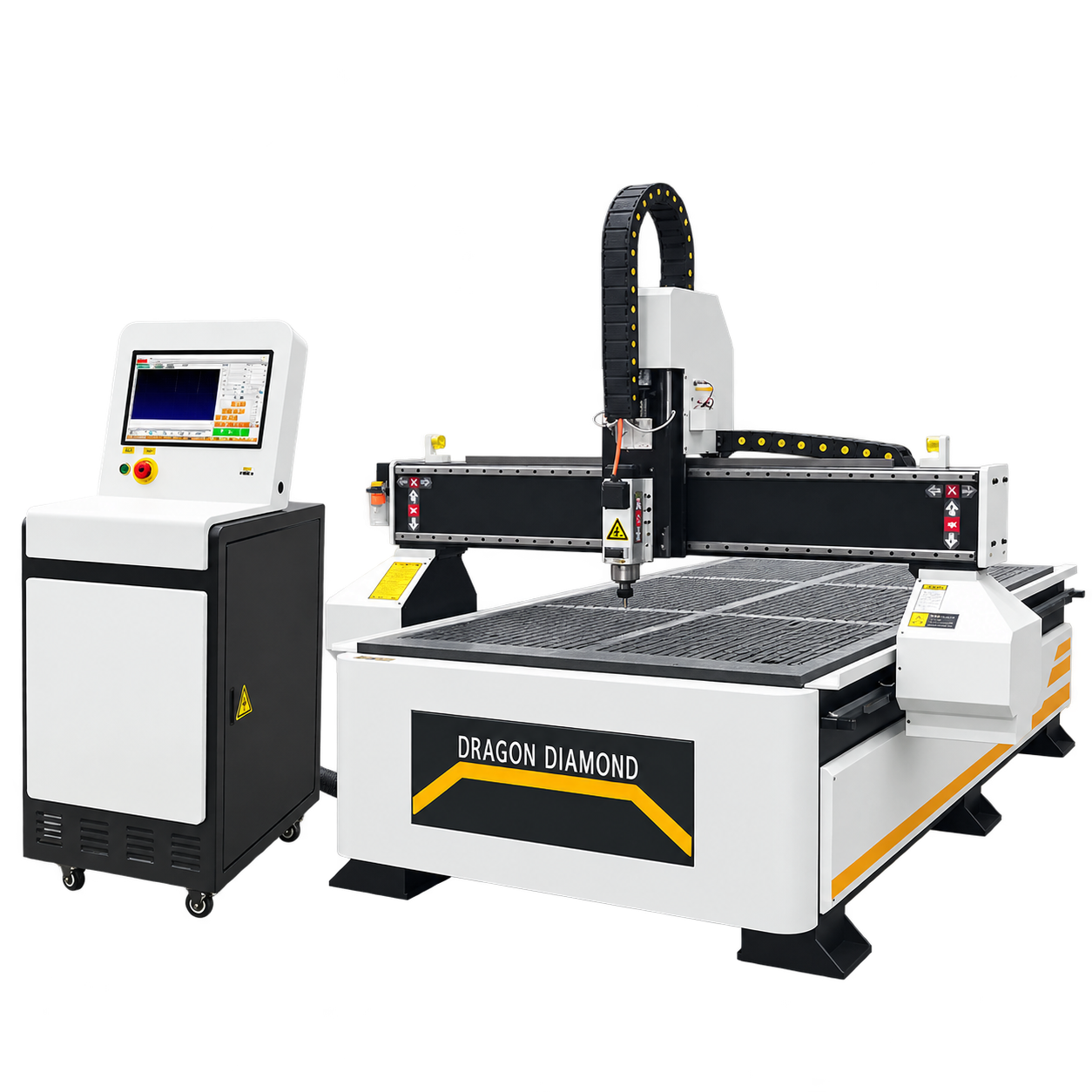

LZ-1325 Plus
1300 × 2500 mm
3.5 / 4.5 / 6.0 / 7.5 kW air-cooled
A vacuum-table CNC router for signage, display boards and woodworking. Select the air-cooled spindle configuration for your material, and add the optional CCD camera system when printed contours need to be recognized before routing.
View LZ-1325 Plus
ROUTING · CCD · VIBRATING KNIFE

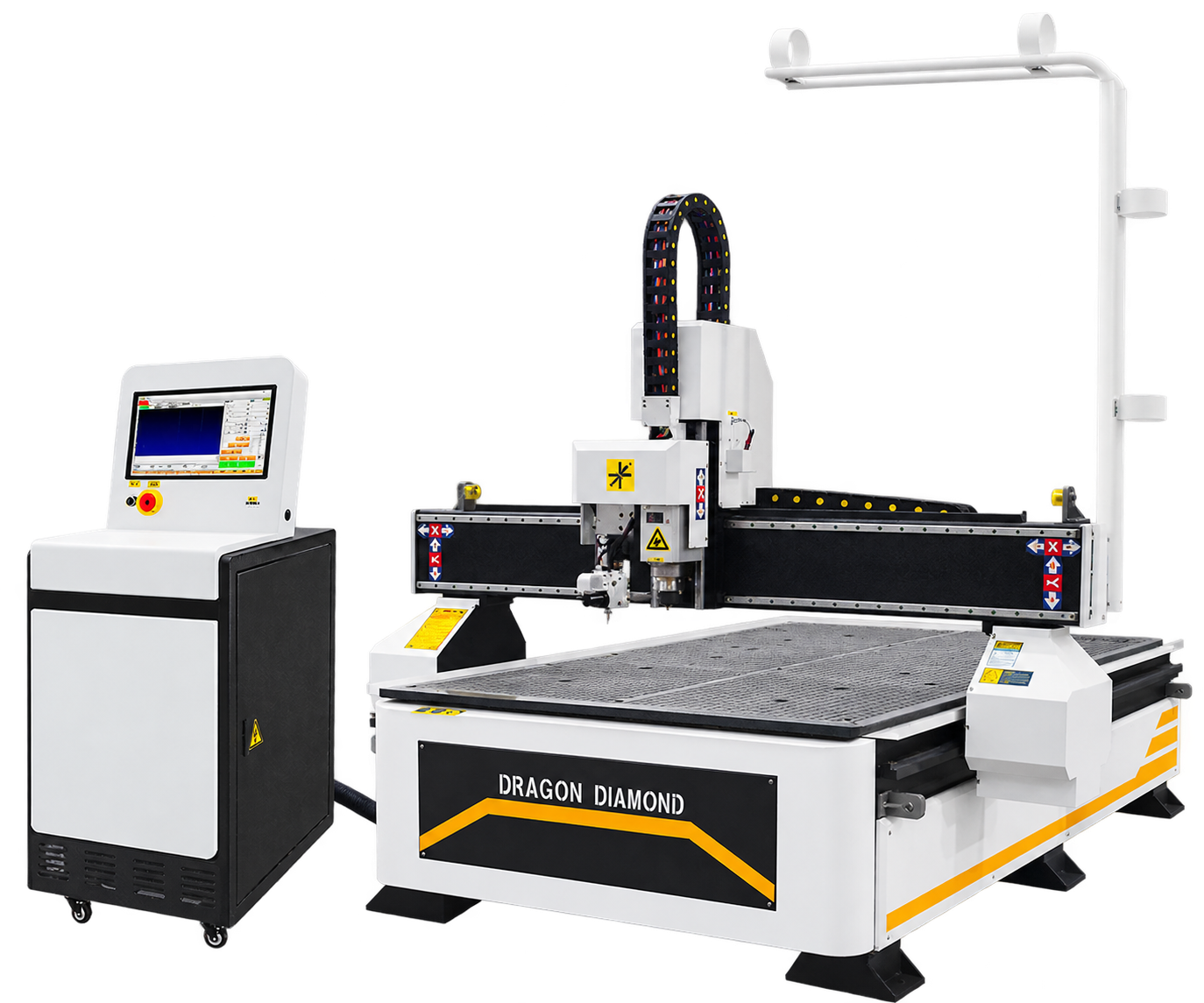

LZ-1325 Pro
1300 × 2500 mm
Water- or air-cooled spindle selection
A combined routing and vibrating-knife platform for signage, display production and woodworking. The spindle handles suitable rigid panels, while the knife and CCD workflow support suitable printed boards and flexible materials.
View LZ-1325 Pro
ROUTING · CCD · KNIFE · ROTARY

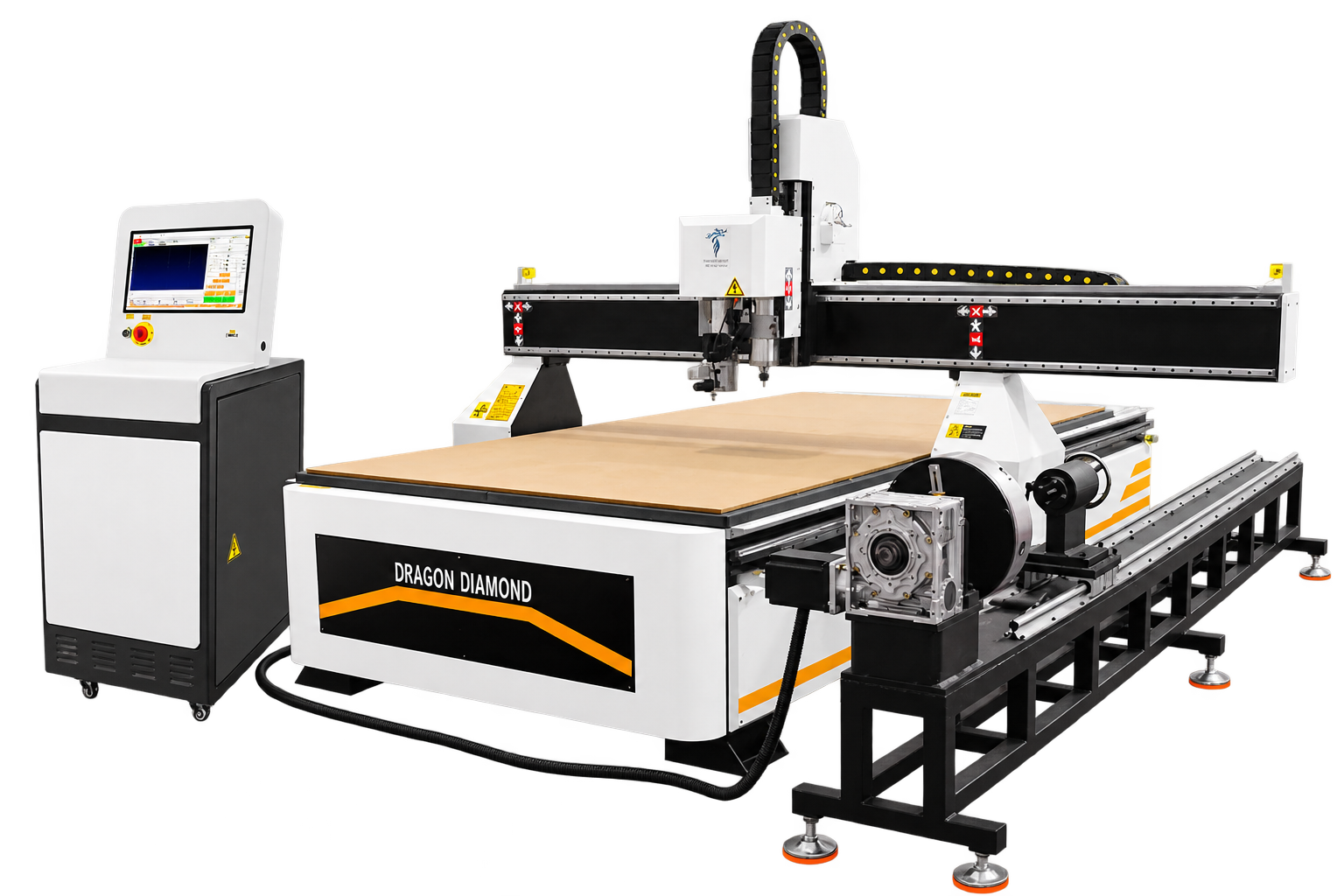

LZ-1530 Pro
1500 × 3000 mm
3.0–9.0 kW spindle configurations
A larger four-function CNC platform combining a router spindle, CCD camera, vibrating knife and side-mounted rotary axis. It supports signage and woodworking jobs that combine flat sheet work with suitable cylindrical components.
View LZ-1530 Pro
STONE · SIGNAGE

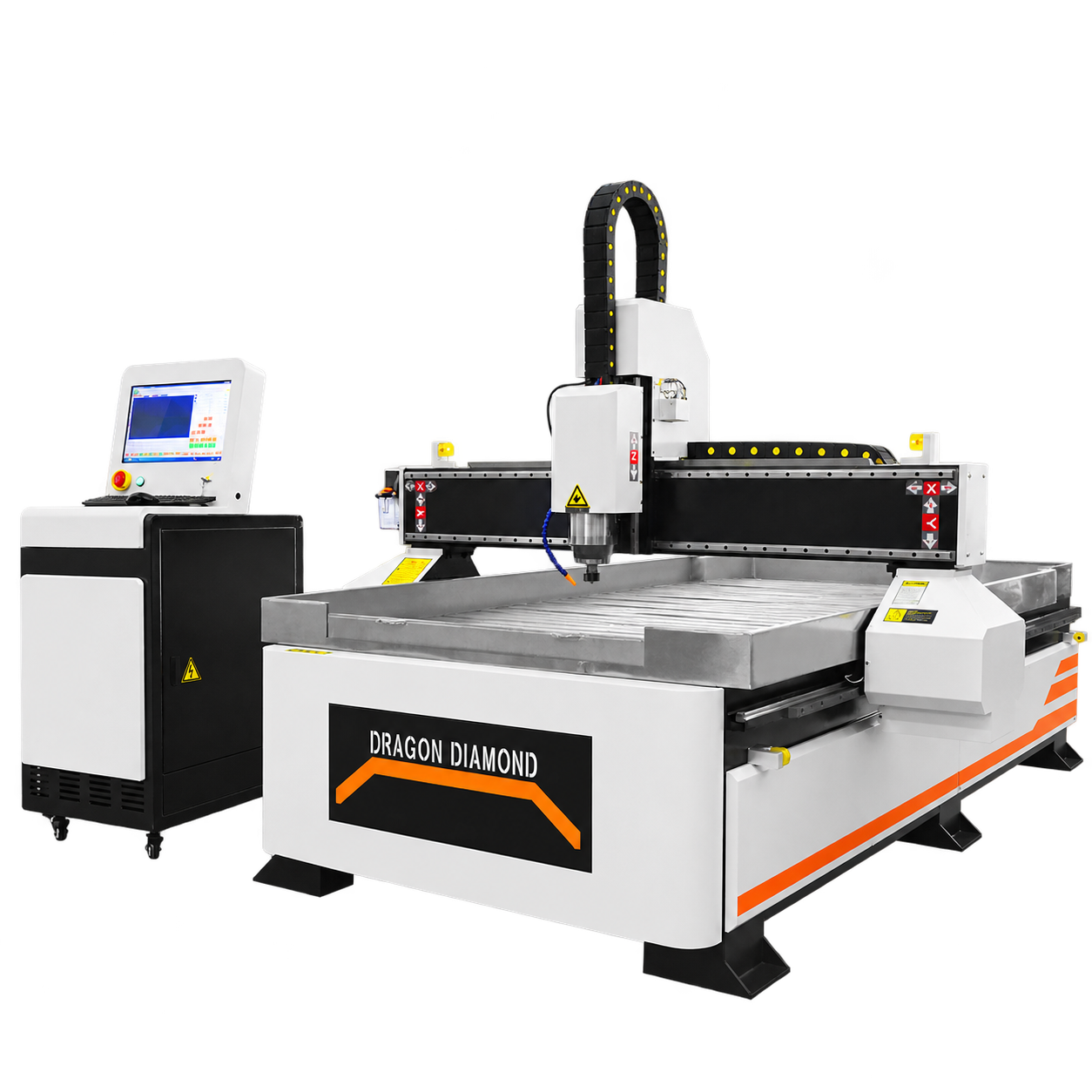

LZ-1325S
1300 × 2500 mm
5.5 / 6.0 / 7.5 kW water-cooled
A CNC routing platform with a stainless water-tank table for stone lettering, relief work and suitable signage components. Select tooling, coolant handling and spindle power around the exact stone or other material to be machined.
View LZ-1325S
COMPACT · SIGNAGE

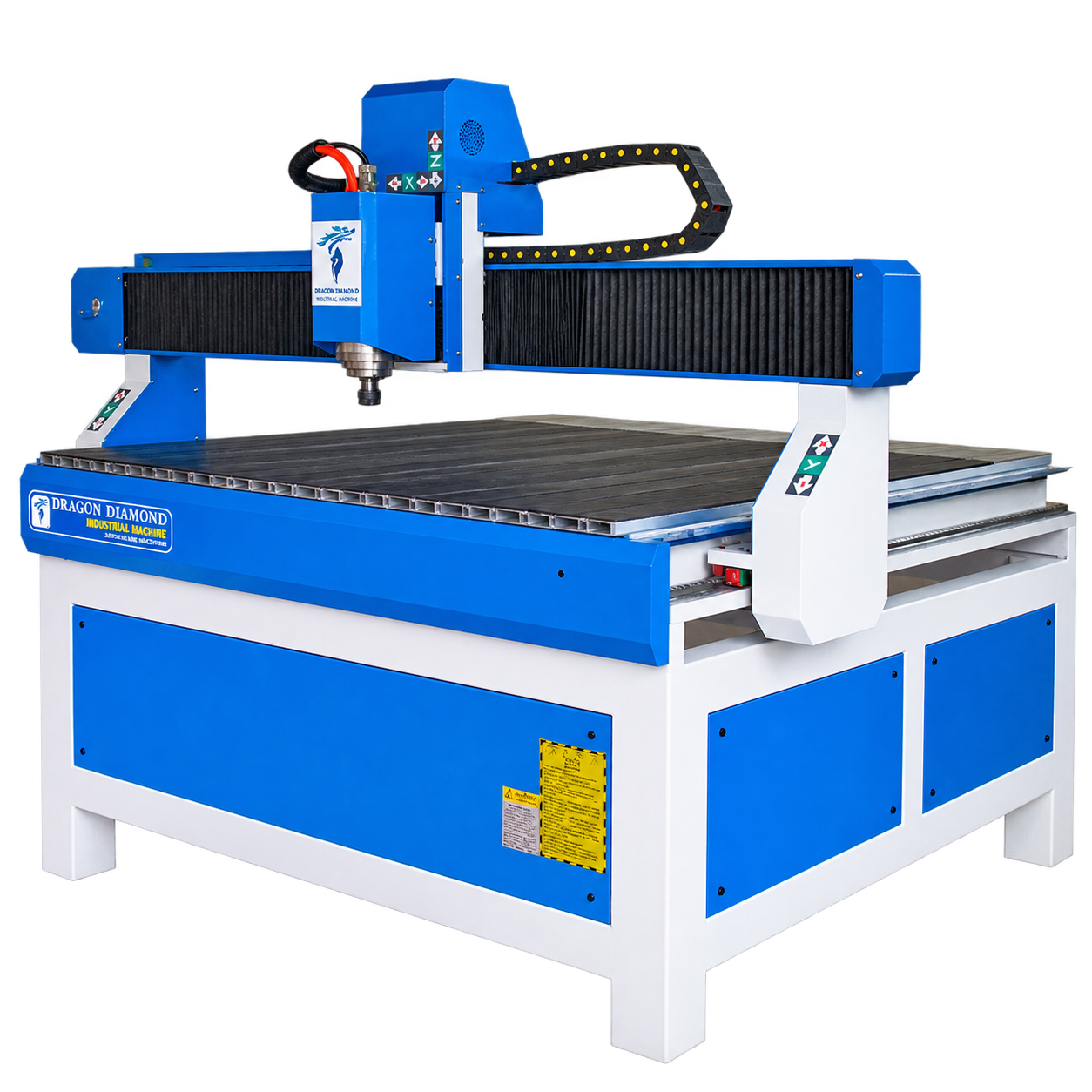

LZ-1212A
1200 × 1200 mm
1.5–3.0 kW water-cooled configurations
A compact 1200 × 1200 mm CNC router for smaller signage parts, acrylic lettering and suitable MDF or PVC components. Its aluminum T-slot table provides a clamping surface for varied part shapes.
View LZ-1212A
SMALL FORMAT · SIGNAGE

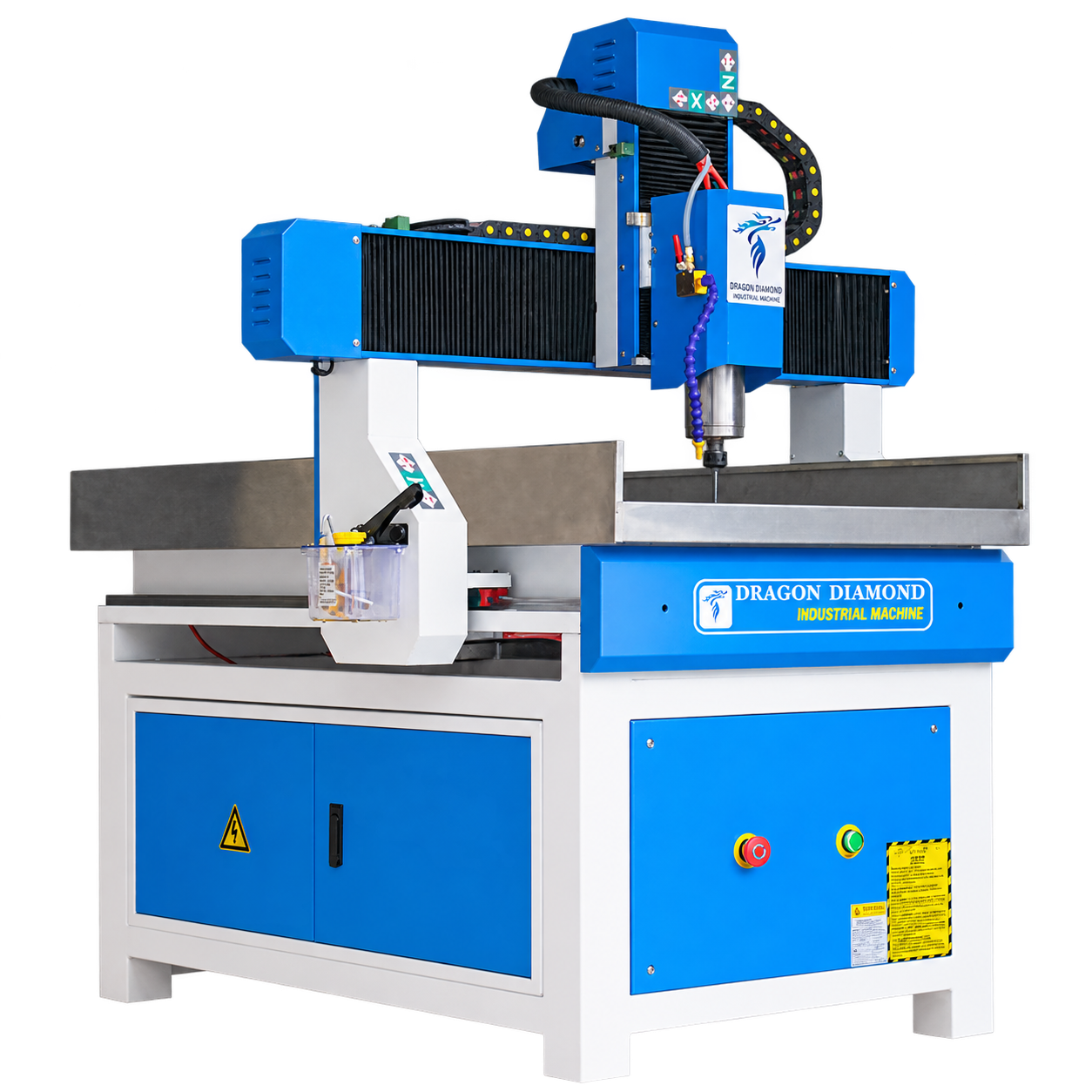

LZ-6090
600 × 900 mm
2.2 kW water-cooled
A small-format CNC router for compact signage parts, engraving and prototype work. The standard aluminum T-slot table with PVC protection can be configured with an optional water-tank arrangement for suitable wet-machining applications.
View LZ-6090
FEATURED CNC ROUTER
LZ-1325: a starting point for your workshop
Review the spindle, table and holding method against your production needs. The right setup depends on sheet dimensions, part geometry and the machining operations required.
- Spindle
- 3.0 kW water-cooled
- Worktable
- Aluminum profile + PVC
- Control
- Three-axis CNC control system
- Dust extraction
- Included in the regular configuration
- Optional vacuum system
- Vacuum table + vacuum pump
Worktable options on the basic LZ-1325
Standard: aluminum profile + PVC
Plan clamps and fixtures around the toolpath. Check how each part stays supported during profile cutting, pockets and routed details.
Optional: vacuum table + pump
Assess board porosity, part size and layout before choosing vacuum workholding. The optional system includes both the vacuum table and vacuum pump.
Tooling, supplied accessories and any positioning requirements are confirmed in the equipment proposal. Printed panels need a separately confirmed alignment workflow.
See CNC equipment in customer production
Georgia · furniture components
See factory testing, packing, shipment and the customer's woodworking applications. Finished furniture also involves assembly and finishing.
Read the Georgia Case Study →
Israel · event display panels
Explore shaped decoration boards and finished event displays, with CNC processing forming one part of the production workflow.
Read the Israel Case Study →Historical projects use customer-specific configurations. They do not define the current LZ-1325 standard configuration. Printing, assembly and finishing are separate production steps. Explore display production →
From sample testing to installation support
Send material details, drawings, part dimensions and your output target. We review the machining process and sample results before recommending equipment and options.
English manuals and videos, remote installation training, equipment-specific spare parts and technical support help your team prepare for production. On-site training can be arranged. Delivery timing is agreed for each order.
Request a Free Sample TestCNC Router Selection Questions
Which materials should I discuss for CNC routing?
Share the exact wood, plywood, MDF, acrylic or PVC board specification, thickness and required operations. Material composition, tooling and workholding must be assessed through testing before a configuration is confirmed.
What is included in the regular LZ-1325 configuration?
The regular configuration includes a 3.0 kW water-cooled spindle, aluminum profile + PVC worktable, three-axis CNC control system and dust extraction equipment. Your quotation confirms all supplied accessories.
Is a vacuum table included on every model?
It depends on the model. Plus and the listed ATC/Pro configurations use vacuum tables. On the basic LZ-1325, the vacuum system is optional and includes a vacuum table and vacuum pump. Its suitability depends on board porosity, part size and the cutting layout; assess the actual job before selecting it.
Are customer case machines identical to the featured configuration?
No. Customer projects can include order-specific equipment and options. The Israel and Georgia cases illustrate applications, while your quotation defines the machine and options supplied for your order.
What should I send for a free sample test?
Send your material specification, thickness, drawings, largest part size, required finish and output target. We will agree the test arrangements with you. Any sample shipping is agreed separately.
